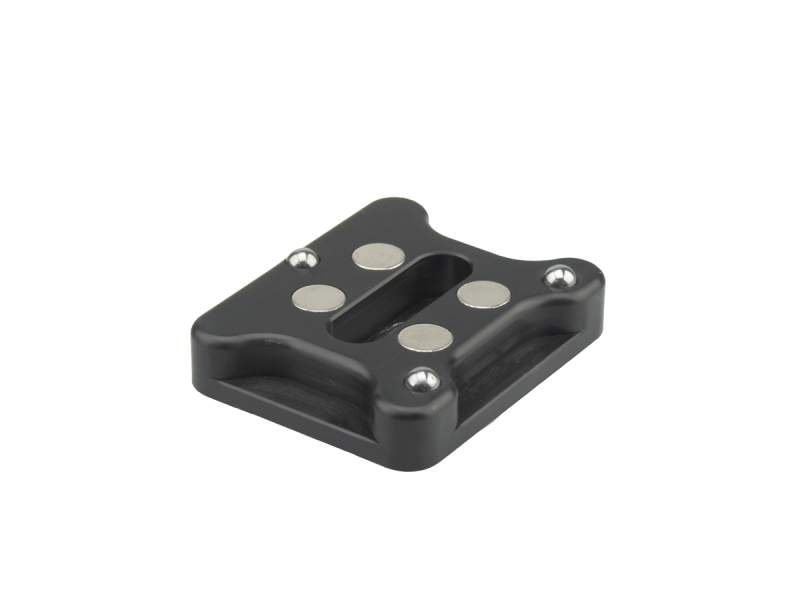

Bottom Plate, For (M-)BK-2A Kinematic Base

Bottom Plate, For (M-)BK-2A Kinematic Base

Model: BK-2A-B

$86

In Stock

Compare

Add to List

Product Series Overview

Kinematic Bases

The BK-2A-B Bottom Plate is a spare for (M-)BK-2A Kinematic Bases.

Specifications

Technical Specs

Type

Kinematic Base Bottom Plate
Base size

50.5 x 62.2 mm
Thread Type

1/4-20 (M6) CLR

Material

Aluminum

Type

Kinematic Base Bottom Plate
Base size

50.5 x 62.2 mm
Thread Type

1/4-20 (M6) CLR

Material

Aluminum

Resources & Downloads

Other

BK-2A-B RoHS Certificate (277.8 kB, PDF)
BK-2A-B_RoHS2021.pdf (680.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-2A-S (161.5 kB, PDF)
