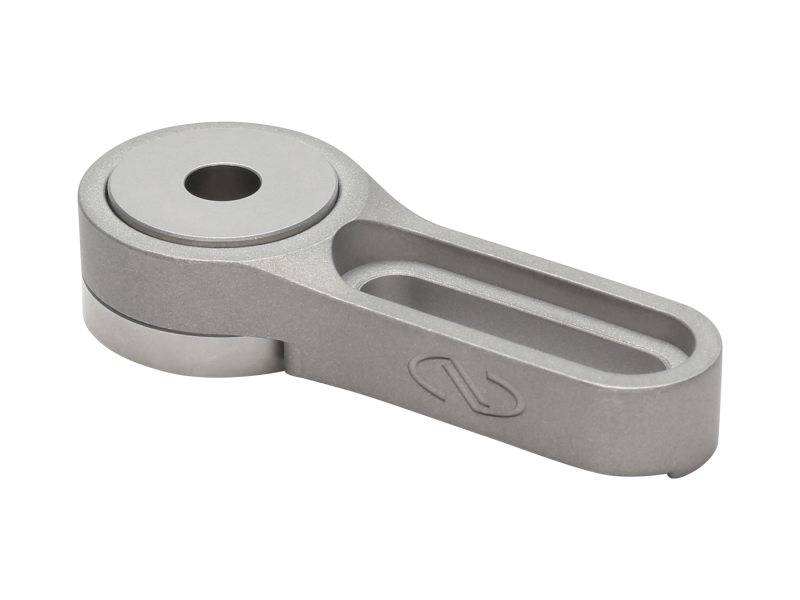

Slotted Base, Magnetic Swivel, 1/4-20 (M6) Through-Hole

Slotted Base, Magnetic Swivel, 1/4-20 (M6) Through-Hole

Model: APHB

$27.00

Show

Compare

Add to List

Product Series Overview

Stainless Steel Swivel Slotted Bases

The APHB swivel base utilizes a magnet for initial positioning and a swivel clamp for aligning with optical table holes for final lock down. The slot accepts a ¼-20 or M6 screw.

Specifications

Technical Specs

Thread Type

1/4-20 (M6) CLR
Material

Stainless Steel

Thread Type

1/4-20 (M6) CLR
Material

Stainless Steel

Resources & Downloads

Other

APHB RoHS2-2021 Certificate (676.1 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

APHB Dimensions (147.4 kB, PDF)
