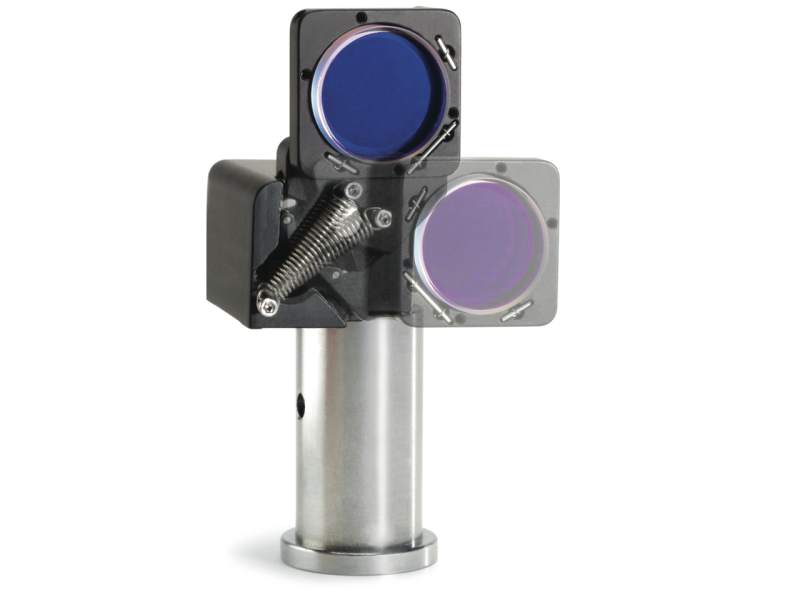

The 8892-K-M Motorized Flipper Mount allows you to remotely flip a 1.0 inch (25.4 mm) diameter optic in and out of your beam path with a transit time of less than half a second. Originally designed for demanding commercial applications, the Model 8892-K motorized Flipper mount offers excellent stability and repeatability. Optic tilt is adjusted with our precision 80 pitch Allen-key screws, and locking nuts preserve your settings during flips. The Flipper mount’s included hand pad lets you control it from a distance (hardwired 6-foot cable with stereo jack) with your thumb, or you can control it even more remotely via its TTL interface (2.5mm Input Plug included). M4 tapped mounting holes.
Originally designed for demanding commercial applications, our motorized flipper mount offers excellent stability and better than 25 µrad repeatability.
Optic tilt is adjusted with precision 80-pitch screws, and locking nuts preserve settings during flips.
The Flipper mount’s included hand pad allows simple thumb control from a distance or more remotely via its TTL interface.
