Silver Mirror, Femtosecond Optimized, 0-45° AOI, 25.4 mm, 470-1000 nm
Silver Mirror, Femtosecond Optimized, 0-45° AOI, 25.4 mm, 470-1000 nm
Model: 10B20EAG.2
Quantity Discount
Save 10% when ordering 10 or more!
Discount applied in cart.
Save 10% when ordering 10 or more!
Discount applied in cart.
Product Series Overview

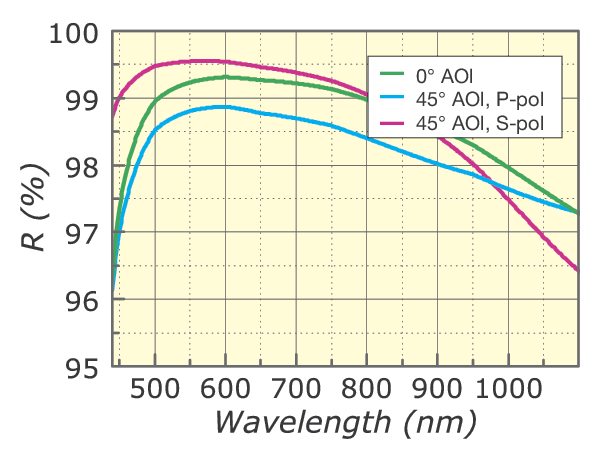

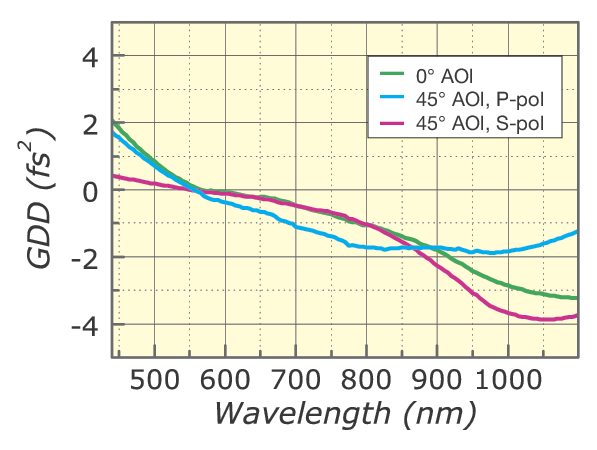

Femtosecond Optimized Silver MirrorsThe 10B20EAG.2 Femtosecond Optimized Silver Mirror is 25.4 mm in diameter, 6.35 mm thick, and broadband optimized for 470 - 1000 nm. This ultrafast mirror is designed for zero to 45 degrees angle of incidence for S and P polarization. The absolute value of GDD is an astounding less than 5 fs2 from 550 to 1050 nm. Ideal for use with ultrashort pulse lasers, this high reflectance beamsteering mirror gives R>97% 470-1000 nm at 0 deg AOI, Rp>96% 480-1100 nm at 45 deg AOI and Rs>98% 460-890 nm or Rs>96% 430-1000 nm at 45 deg. Careful thin film coating design and advanced coating processes result in a mirror with maximum reflectivity and bandwidth with minimum effect on pulse dispersion.
Specifications
- Wavelength RegionNIR
- Wavelength Range470-1000 nm
- Mirror ShapeRound
- Diameter25.4 mm
- MaterialN-BK7
- Coating TypeBroadband special coating for ultrafast pulses
- Coating CodeEAG.2
- Surface Quality10-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Wedge< 5 arc min
- Angle of Incidence0-45°
- Clear Aperture≥ central 85% of diameter
- Back SurfaceFine Grind
- ReflectivityR> 97% @ 470-1000 nm, 0° AOI
RS>96% @ 430-1000 nm, RS>98% @ 460-890 nm, RP>96% @ 480-1100 nm, 45° AOI - Thickness6.35 mm
- Thickness Tolerance±0.1 mm
- Diameter Tolerance+0/-0.1 mm
- Chamfers300 ± 200 µm
- Chamfers Angle Tolerance45 ±15°
- CleaningNon-abrasive method, methanol or isopropyl alcohol on lens tissue recommended
