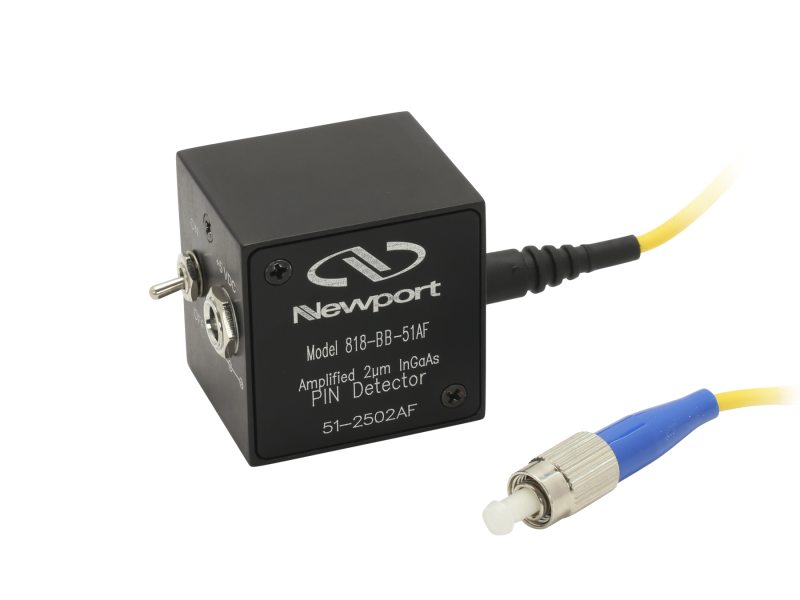

The 818-BB-51AF High Speed Amplified Biased Photodetector is built from an extended InGaAs photodiode with a 40 μm active diameter and a fast <35 ps rise time. This device is fiber pigtailed with FC/UPC connector for easy alignment and characterization of your devices. With the wavelength range of 1475 - 2100 nm, it allows monitoring Thulium (Tm) and Holmium (Ho) doped lasers as well as other NIR lasers. It has a built-in amplifier with approximately 26 dB of gain. The detector is AC coupled and features a bandwidth of 20 kHz to 10 GHz. A wall plug-in style power supply is provided with this unit.
NOTE-These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP, when unpacking and handling these devices. See the Related Products tab for more information regarding the FK-STRAP.
Additional CAD file downloads are not available for this product.
818-BB-51AF - Drawings
Additional drawings are not available for this product.
