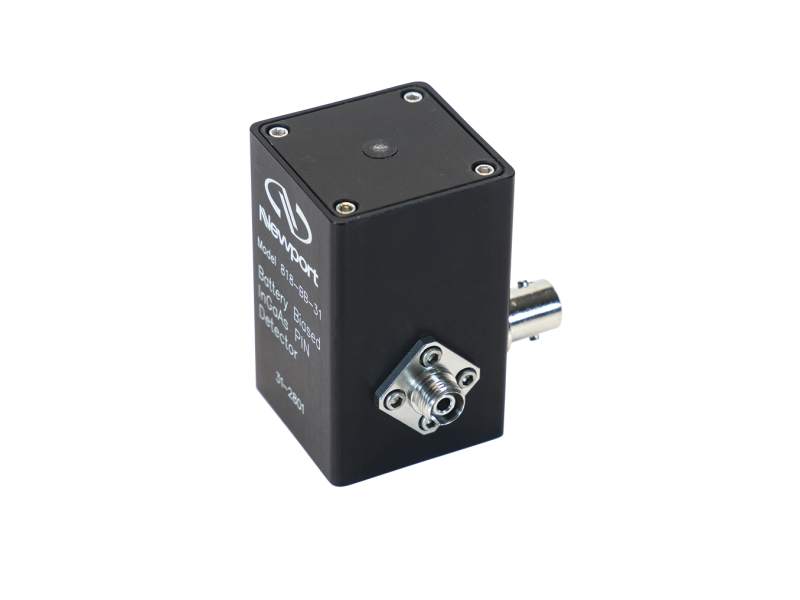

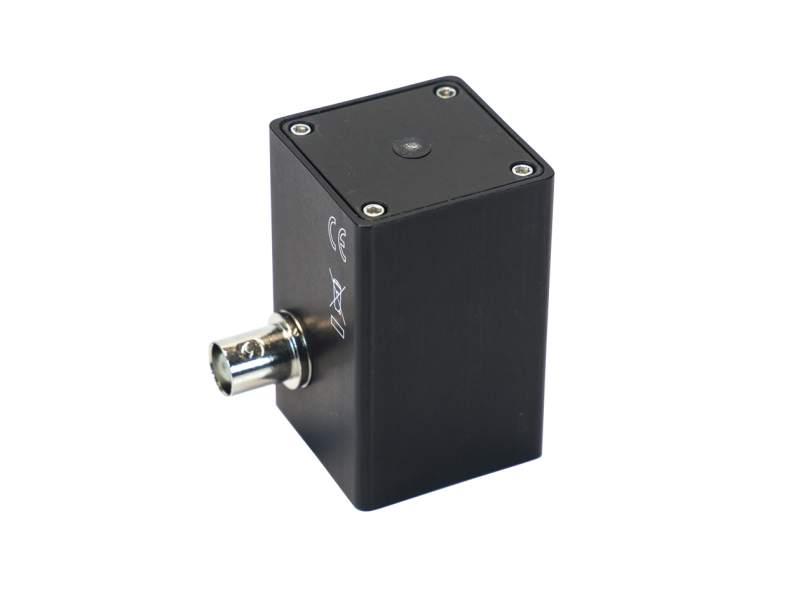

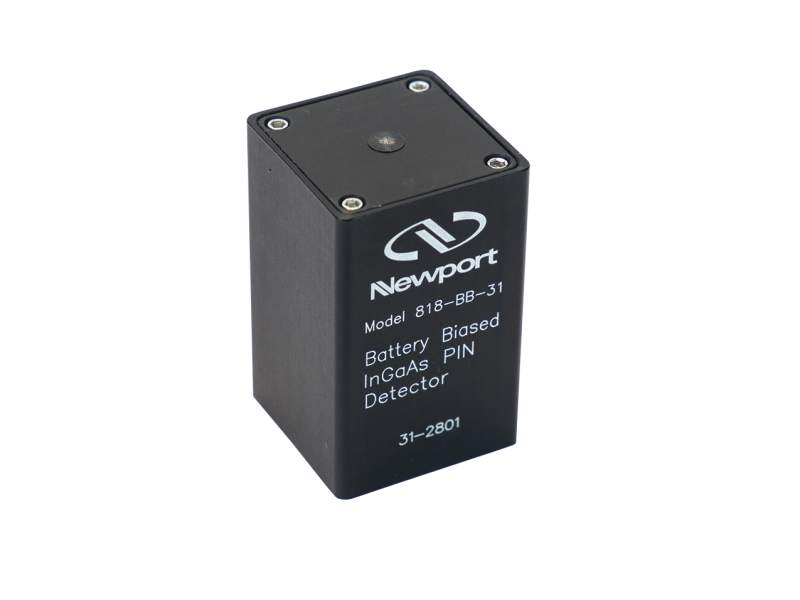

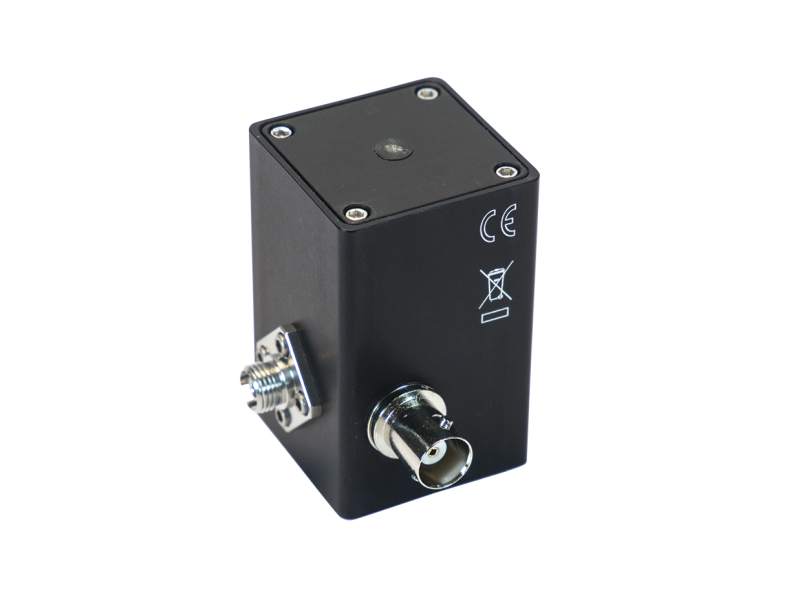

High Speed Photodetector, 1000-1600 nm Battery Biased InGaAs Detector, 1.5 GHz

Technical Specs

  • Optical Input
    FC Receptacle
  • Detector Diameter
    0.1 mm
  • Detector Material
    InGaAs
  • Detector Type
    PIN
  • Acceptance Angle
    20°
  • Wavelength Range
    1000-1600 nm
  • 3 dB Bandwidth
    DC to 2 GHz
  • Rise Time
    175 ps

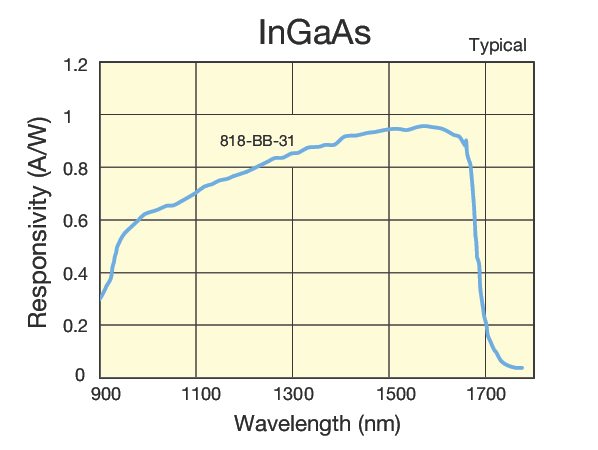

  • Responsivity
    0.9 A/W @ 1300 nm
  • Output Connector
    BNC
  • Amplified
    No
  • Bias Voltage
    6 V
  • Cut-off Frequency
    >2 GHz
  • Dark Current
    <1 nA
  • Junction Capacitance
    <1.25 pF
  • Reverse Breakdown
    25 V
  • NEP
    0.1 pW/√Hz
  • Fall Time
    <175 ps
  • Saturation Current
    10 mA
  • Thread Type
    8-32 and M4
