819M-B-0.50-1.0V2 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres

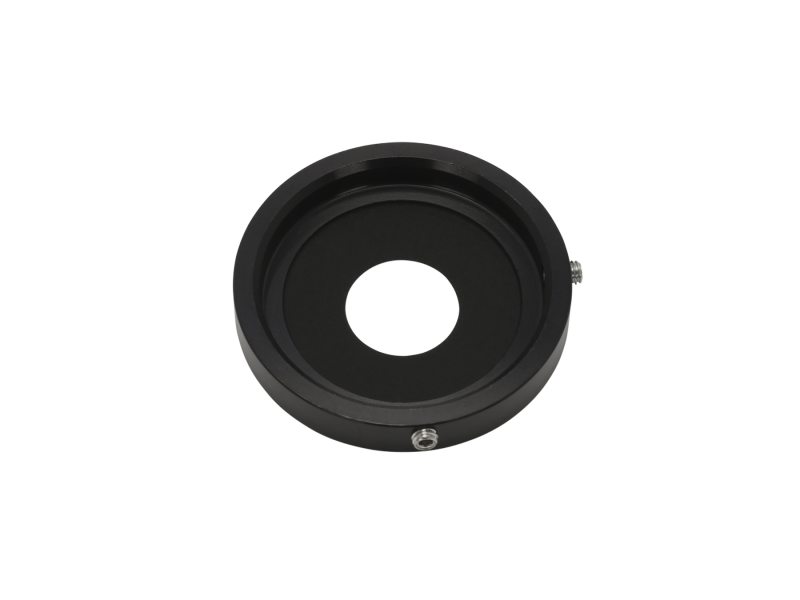

Port Aperture Reducers for Integrating Spheres

The 819M-B-0.50-1.0V2 (P/N 7Z08363N) Port Reducer is used to reduce the port size of a 819C or 819D Series integrating sphere from 1 inch to 1/2 inch. Flat Black coating inside. Comes with a 1.5 mm Allen wrench and M3 set screws.

Specifications

Technical Specs

Type
Port Aperture Reducer
Sphere Material
Flat Black
Port Size
1.0 in.
Clear Aperture
0.5 in.

Material
Black anodized aluminum

Type
Port Aperture Reducer
Sphere Material
Flat Black
Port Size
1.0 in.
Clear Aperture
0.5 in.

Material
Black anodized aluminum

Resources & Downloads

3D Product Models

Download CAD Files

Tutorials

Integrating Sphere Fundamentals and Applications

2D Product Drawings

7Z08363N-819M-B-0.50-1.0V2 Dimensional Drawing.pdf(91.6 kB, PDF)

Literature

DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
