Dielectric Mirror, Broadband, Zerodur, 101.6 mm, 700-950 nm

High-Performance Zerodur Dielectric Mirrors

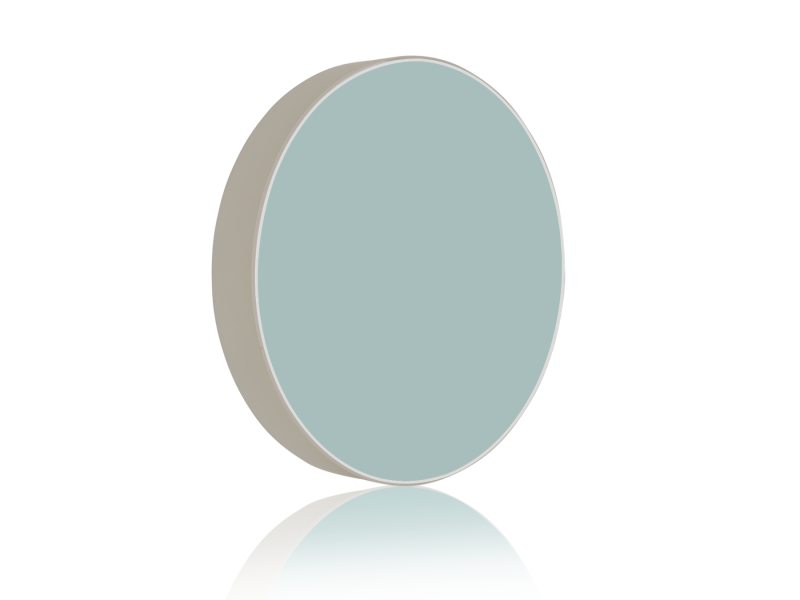

The 40Z20BD.2 Broadband Dielectric Mirror is an extremely versatile mirror for laboratory applications and highly efficient over a broad wavelength range. This 4 inch (101.6 mm) diameter mirror is made from a 17.7 mm thick Zerodur substrate. Zerodur is a glass-ceramic material where thermal expansion is nominally zero. This extra stability can be critical for applications requiring diffraction limited performance. The BD.2 coating offers high reflectance for near infrared diode laser applications. The BD-2 coating is extremely durable and will withstand repeated cleaning. This mirror has a λ/10 surface flatness and a 20-10 surface quality.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
Round
Diameter
101.6 mm
Mirror Size
Ø101.6 mm
Thickness
17.7 mm
Material
Zerodur^® or equivalent
Coating Type
Broadband Dielectric
Coating Code
BD.2
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
40Z20

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
Rs (avg)>99%, Rp (ave)>97% @ 700-950 nm,R(avg)>80% at 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
Round
Diameter
101.6 mm
Mirror Size
Ø101.6 mm
Thickness
17.7 mm
Material
Zerodur^® or equivalent
Coating Type
Broadband Dielectric
Coating Code
BD.2
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
40Z20

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
Rs (avg)>99%, Rp (ave)>97% @ 700-950 nm,R(avg)>80% at 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Other

40Z20BD.2 RoHS Certificate(703.5 kB, PDF)
BD.2 Raw Data.xlsx(82.6 kB, XLSX)
