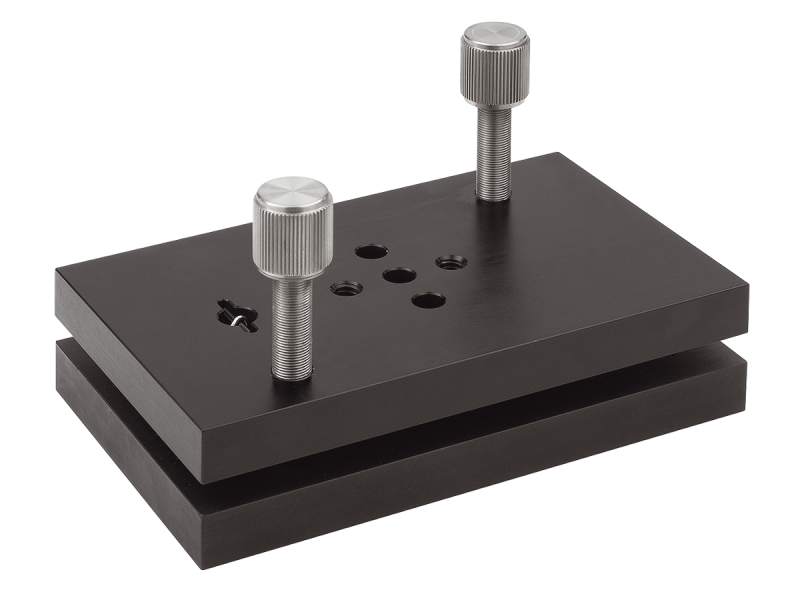

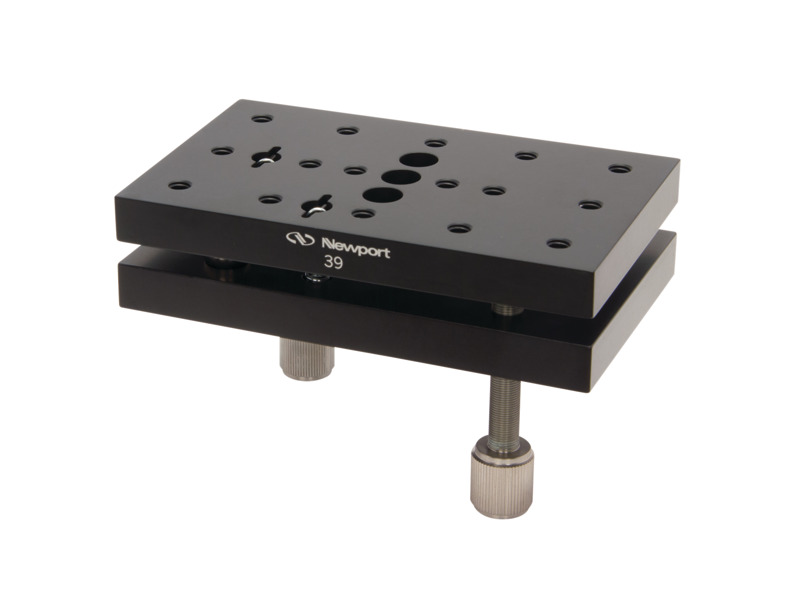

The Model 39 Two Axis Tilt Platform provides -3.5° to 14° angular adjustments for the long axis and -5° to 16° angular adjustments for the short axis. This allows a mounted component to be oriented parallel to an arbitrary plane. 40-Pitch adjustment screws provide angular adjustments. The model 39 is made from black anodized aluminum alloy. For a fixed nonadjustable version of this platform, see model 38.
These multi-axis platforms provide tip, tilt and rotation adjustments for aligning optical components.
Model 36 has an elevation tilt adjustment and a rotation adjustment that rotates the mounting platform about the kinematic pivot point — ideal for use as a pointer.
Model 37 provides full, three-axis angular orientation freedom. When used with an XYZ stage, it provides six degrees of freedom for total positioning capability.
Model 39 provides two axes of angular adjustments, allowing a mounted component to be oriented parallel to an arbitrary plane.
These tilt stages are ideally suited for mounting linear translations stages like the 423 and 443 to provide assemblies with full alignment capability. On the left, the 443 linear stage is mounted atop the Model 39 which provides tip/tilt adjustment. On the right, Model 36 is mount to an xy stack of 423 linear stages.
