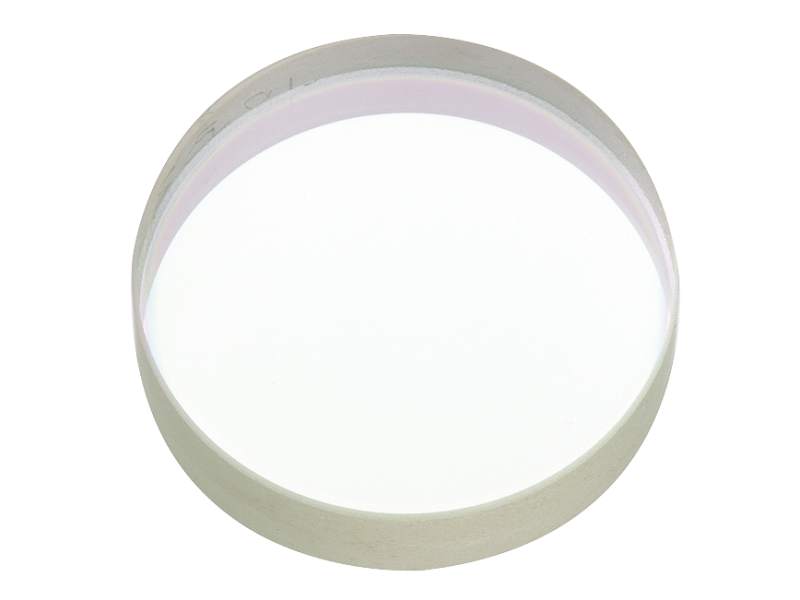

Shear Plate Collimation Tester, 50.8 mm, UV Fused Silica
Shear Plate Collimation Tester, 50.8 mm, UV Fused Silica
Model: 20QS20
In Stock
Product Series Overview

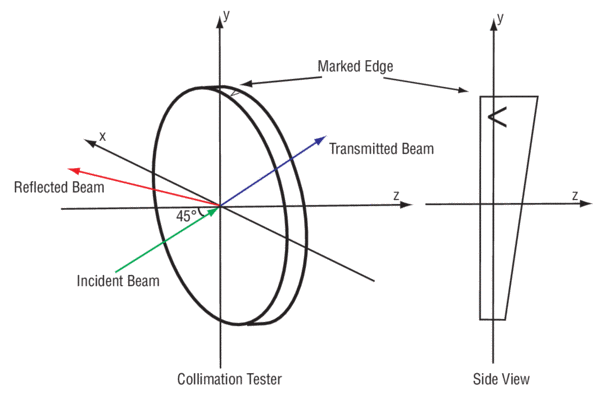

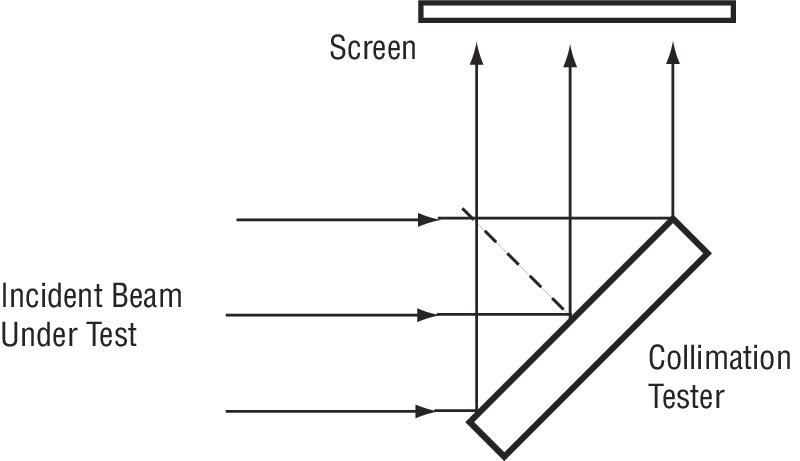

Shear Plate Collimation TesterThe 20QS20 Shear Plate Collimation Tester is a 2.0 inch (50.8 mm) diameter wedged window that allows for quick testing of collimation by utilizing shearing interferometry. When the collimation tester is aligned at a 45° angle of incidence with respect to the incident beam, an interference pattern is formed. By adjusting the input beam condition and observing the fringe pattern, the collimation of the beam can be accurately obtained.
Resources & Downloads
Application Notes
Collimation Tester(155.5 kB, PDF)
2D Product Drawings
Ultrafast Mirror_Wedge-S(72.3 kB, PDF)
Other
20QS20 RoHS Certificate(263.9 kB, PDF) 20QS20_ROHS2-2021.pdf(278.7 kB, PDF)
