Base Plate, Heavy Duty, 410-RC Assembly

Mounting Plates and Platforms

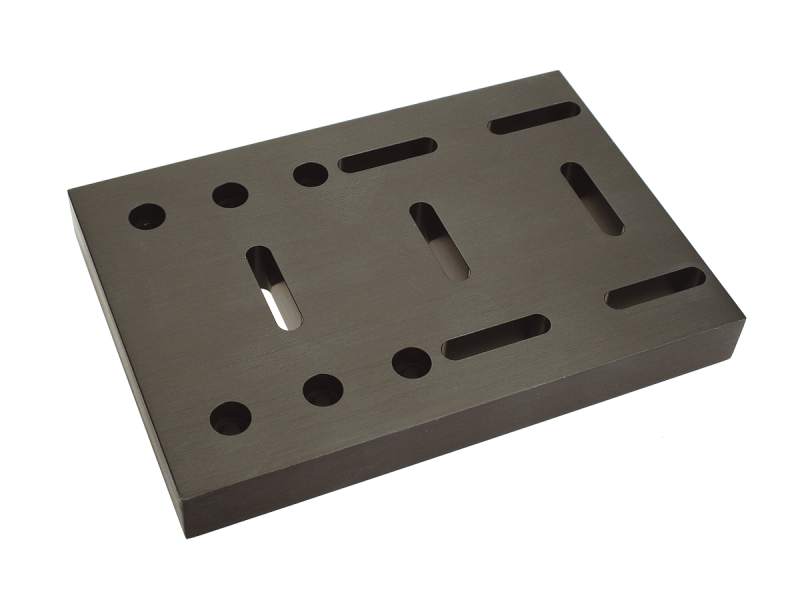

The 20050-01 Heavy Duty Base Plate is part of the Mounting Assembly. It is used as the base for (2) 14.0 in. (355.6 mm) solid steel rods in the assembly.

Specifications

Technical Specs

Type
Base Plate
Height
19.1 mm
Length
165.1 mm
Width
114.3 mm

Thread Type
1/4-20
Material
Aluminum

Type
Base Plate
Height
19.1 mm
Length
165.1 mm
Width
114.3 mm

Thread Type
1/4-20
Material
Aluminum

Resources & Downloads

2D Product Drawings

20050C.pdf(123.1 kB, PDF)

Other

20050-01 RoHS Certificate(687.9 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

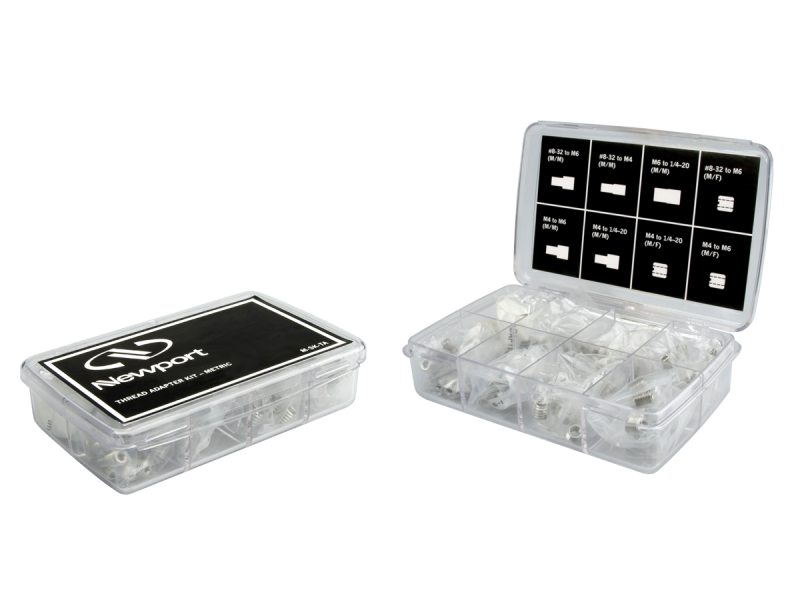

		SK-TAThread Adaptor Set, English	UNIVERSAL		2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$337
		AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
		BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
		SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$75
		BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

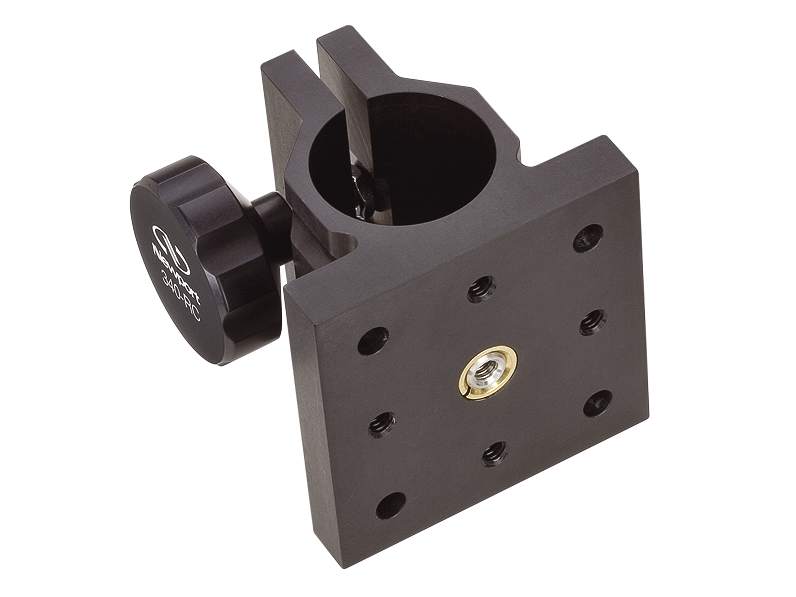

		340-RCPost Clamp, 1.5 in. Diameter Posts, 1/4-20 Thread	IMPERIAL		In Stock	$108
		32AOptical Post Positioner, Cap Screw, 0.7 in. Adjustment, 1.5 in. Post, 1/4-20	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$180

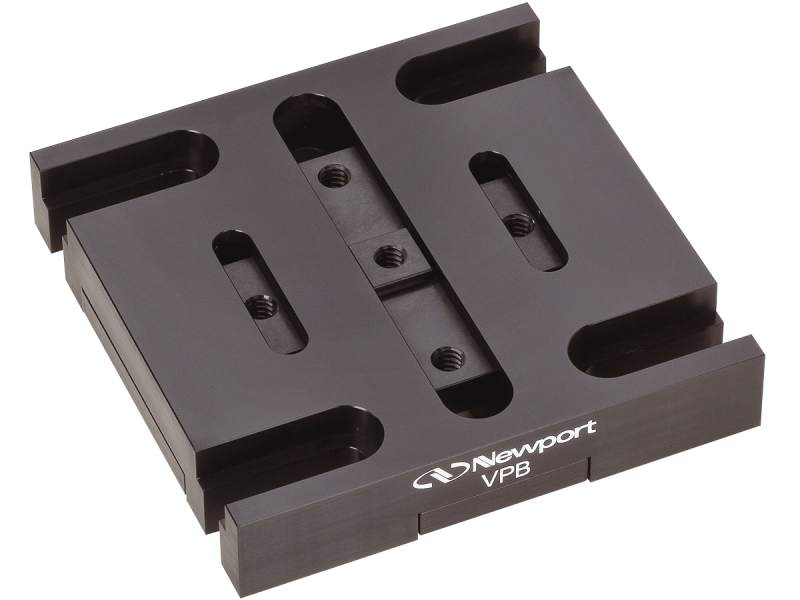

		VPBXY Adjustable Base, 1/4-20 Thread	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$294

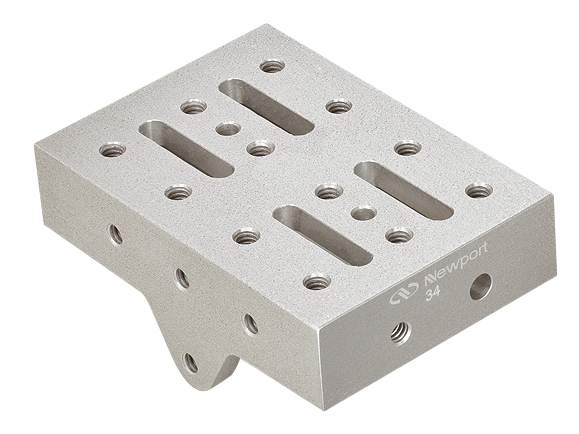

		34Rotatable Post Platform, Arbitrary Angle Mounting, 1.5 in. Post, 1/4-20	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$200

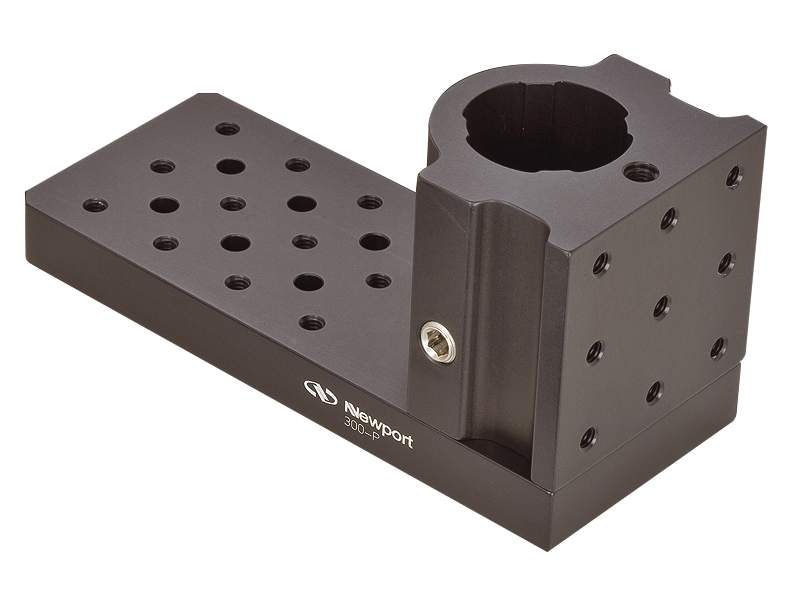

		300-POptical Post Platform, 1.5 in. Diameter Posts, 3 Mounting Surfaces, 1/4-20	IMPERIAL		In Stock	$277
