High Speed Fiber-Optic Detector, 530-870 nm, 25 GHz, FC Singlemode
The 1481-S High Speed Fiber-Optic Detector is ideal for characterizing VCSELs and 10-Gbit/s systems. This photodetector offers a 25 GHz bandwidth with a singlemode input and a 530-870 nm wavelength range. It's clean step responses makes is especially well suited for time-domain characterization of 10-Gbit/s components. In addition, it's well-behaved frequency responses makes it useful for frequency domain measurements.
Specifications
- Detector MaterialGaAs
- Detector TypePIN
- Wavelength Range530-870 nm

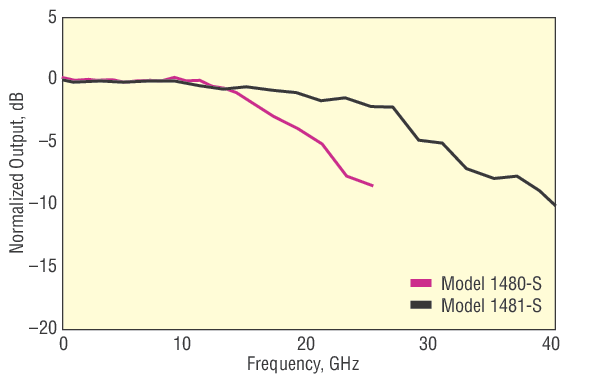

- 3 dB BandwidthDC to 25 GHz
- Maximum Conversion Gain10 V/W

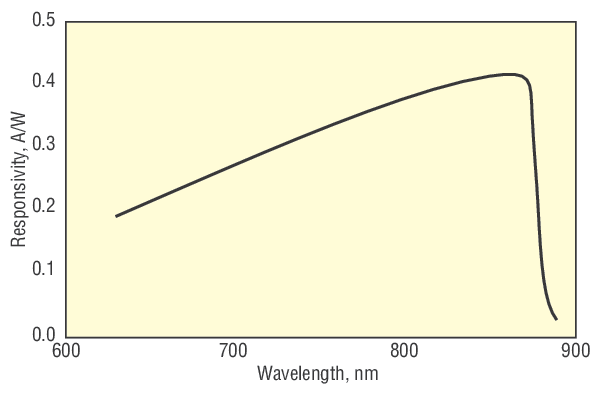

- Responsivity0.5 A/W
- Optical InputFiber-optic
- Fiber-Optic ConnectorFC/UPC
- Fiber TypeSinglemode
- Rise Time15 ps
- NEP45 pW/√Hz
- Saturation Power2 mW
- Output ConnectorWiltron K
- Output Impedance50 Ω
- DC Bias Monitor Bandwidth50 kHz
- DC Bias Monitor Transimpedance Gain1 V/mA
- Power Requirements±15 VDC, 200 mA
Resources & Downloads
Manuals
High-Speed Detectors and Receivers User's Manual(341.5 kB, PDF)
2D Product Drawings
15XXmech_dwg_2005(96.7 kB, PDF)
