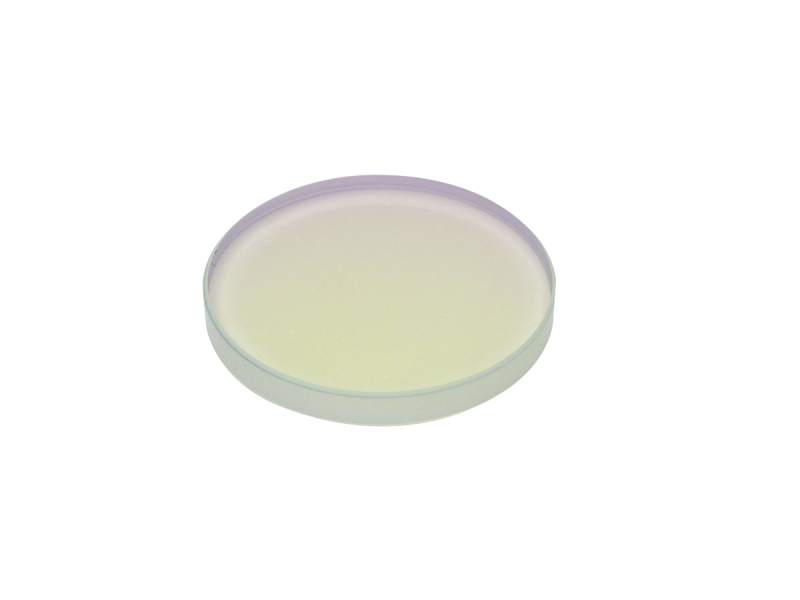

Shortpass Filter, 25.0 nm, 1000 nm Cut-off, 465-988 nm Transmission

  • Type
    High Transmission Shortpass Filter
  • Optic Size
    Ø25.0 mm
  • Cut-off Wavelength
    1000 nm
  • Cut-off Wavelength Tolerance
    ± 10 nm
  • Angle of Incidence
  • Transmittance Range
    465 - 988 nm
  • Transmission
    ≥91%
  • Rejection Band
    1035 - 1400 nm
  • Surface Quality
    80-50 scratch-dig
  • Thickness
    3.0 mm
  • Thickness Tolerance
    ±0.1 mm
  • Size Tolerance
    +0.0/-0.2 mm
  • Temperature Range
    -50 to 100°C
  • Humidity Resistance
    Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles
