Diffuser Kit, Circular Light Shaping, Medium, 25.4mm, 10,15,20,25°

The 10DKIT-C2 is a Circular Light Shaping Diffuser Kit. Four medium angle 25.4 mm diameter diffusers are included: 10°, 15°, 20°, 25°.

Light Shaping Diffusers® smooth and homogenize hot spots and uneven light distribution while providing uniform light in critical applications. These diffusers also precisely shape, control and distribute light into a specific cone angle.

Specifications

Technical Specs

Type
Diffuser Kit, Medium
Diameter
25.4 mm
Diffusion Angle (FWHM)
10°, 15°, 20°, 25°

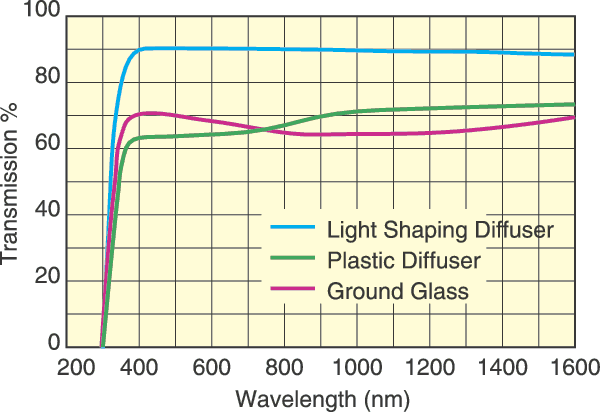

Wavelength Range
365–1600 nm
Material
Polycarbonate
Angular Deviation
≤10°: ±0.5°
>1° <10°: ±1°
>10°: ±10%
Orientation
Matte finish should face light source

Thickness
0.76 mm
Damage Threshold
0.22 J/cm² with 10 nsec pulses at 1064 nm, typical
Cleaning
DI water rinse followed by forced air drying, wipe gently with lens tissue soaked with methanol, followed with forced clean air or nitrogen drying (acetone can not be used)
Clear Aperture
21.4 mm

Type
Diffuser Kit, Medium
Diameter
25.4 mm
Diffusion Angle (FWHM)
10°, 15°, 20°, 25°
Wavelength Range
365–1600 nm
Material
Polycarbonate
Angular Deviation
≤10°: ±0.5°
>1° <10°: ±1°
>10°: ±10%
Orientation
Matte finish should face light source

Thickness
0.76 mm
Damage Threshold
0.22 J/cm² with 10 nsec pulses at 1064 nm, typical
Cleaning
DI water rinse followed by forced air drying, wipe gently with lens tissue soaked with methanol, followed with forced clean air or nitrogen drying (acetone can not be used)
Clear Aperture
21.4 mm
