  6. 06SF10

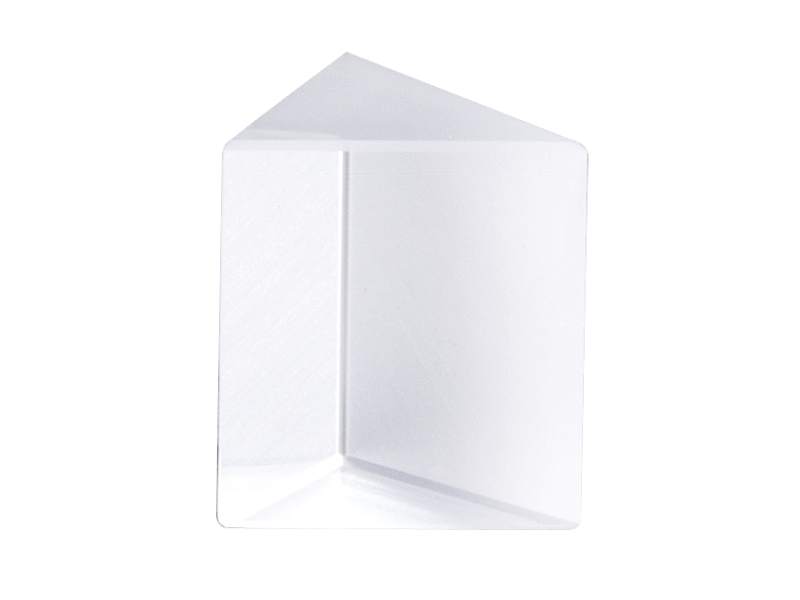

Brewster Angle Dispersing Prism, Ultrafast, SF10, 15 mm, 370-2000 nm

  • Transmission
    370–2000 nm
  • Size
    15 x 15 x 15 mm
  • Material
    N-SF10
  • Apex Angle
    60.60°
  • Antireflection Coating
    Uncoated
  • Surface Quality
    40-20 scratch-dig
  • Surface Flatness
    ≤λ/10 at 632.8 nm over the clear aperture
  • Size Tolerance
    +0/-0.25 mm
