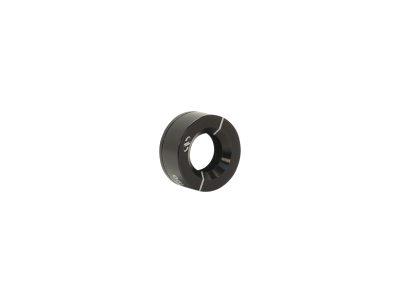

Linear Polarizer, Polymer Film, 700:1, 430-670 nm, 12.7 mm

Technical Specs

  • Diameter
    12.7 mm
  • Wavelength Range
    430-670 nm
  • Material
    Grade A N-BK7
  • Polarizing Material
    Dichroic Polymer
  • Extinction Ratio
    700:1
  • Damage Threshold
    1 W/cm2 CW, 0.2 J/cm2 with 20 nsec pulses, visible, typical
  • Reflectivity
    Ravg <0.5 %, 400-700 nm
  • Surface Quality
    40-20 scratch-dig
  • Clear Aperture
    5.1 mm
  • Diameter Tolerance
    ±0.13 mm
  • Transmitted Beam Deviation
    ≤1 arc min
  • Angle of Incidence
    ±10°
  • Wavefront Distortion
    ≤ λ/5 at 632.8 nm over the clear aperture

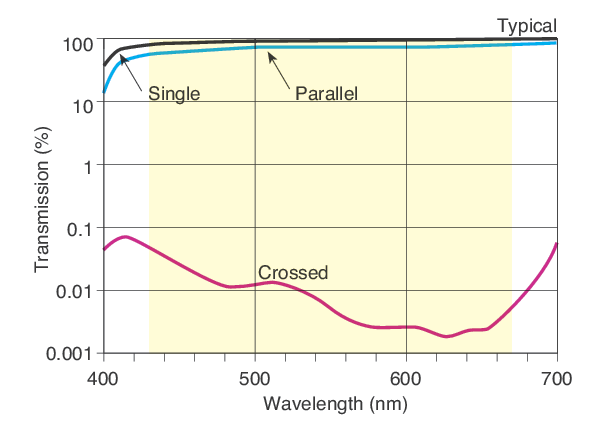

  • Unpolarized Transmission, Parallel Pair
    H0 >28%
  • Unpolarized Transmission, Single
    TT >37%
