Polarization Insensitive Fiber Optic Circulators

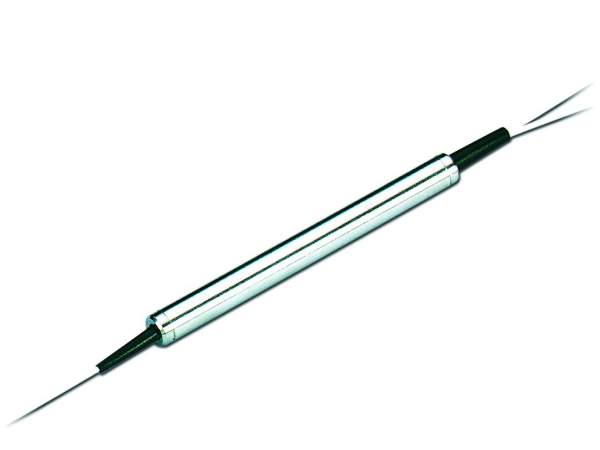

Newport's F-CIR Series Polarization Insensitive Fiber Optic Circulators are compact, high-performance light-wave components that separate signals traveling in opposite directions along fibers by transmitting signals from port 1 to port 2 and port 2 to port 3, while blocking signals traveling in the opposite directions. They feature low insertion loss, high isolation and low Polarization Dependent Loss (PDL).

Exceptional Environmental Stability
High Quality / Low Price
Low Excess Loss
Rugged No-Tail and pigtail versions available

See All Features

Show Filters:

Showing 2 of 2 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Package Type	Operating Wavelength	Fiber Connector	Avail.	Price
		F-CIR-13-P-FAPolarization Insensitive Circulator, 1310 nm, SMF-28 Fiber, FC/APC.	UNIVERSAL		Pigtailed	1310 nm	FC/APC	5 Weeks	$965
		F-CIR-15-P-FAPolarization Insensitive Circulator, 1550 nm, SMF-28 Fiber, FC/APC.	UNIVERSAL		Pigtailed	1550 nm	FC/APC	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$990

Specifications

Fiber Type
Singlemode
Maximum Insertion Loss
0.8 dB
Typical Insertion Loss
0.6 dB
Return Loss
50 dB
Bandwidth
±20 nm
Maximum Optical Power
300 mW

Dimensions
Pigtailed: Ø5.5 x 50 mm
No-Tail: 89 x 38 x 16 mm
Isolation/Cross Talk
50 dB
Polarization Mode Dispersion
0.1 ps
Polarization Dependent Loss, Typical
0.1 dB @ 23°C
Operating Temperature
0 to 70° C
Storage Temperature
-40 to 85 °C

Features

Fiber Pigtailed Models

For applications that require a length of fiber on the input and output of the circulator, choose our pigtailed versions.

Rugged, Compact Bulkhead Design

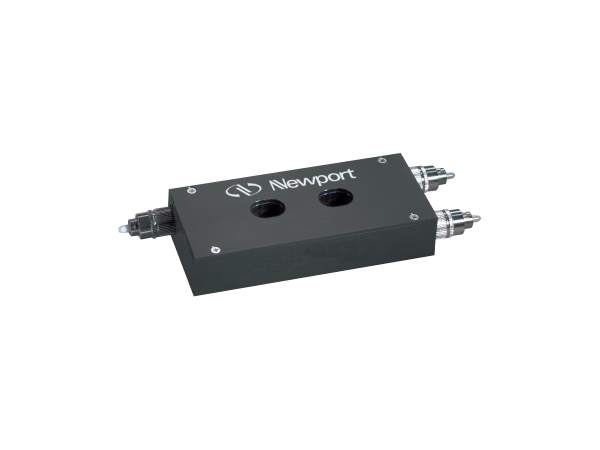

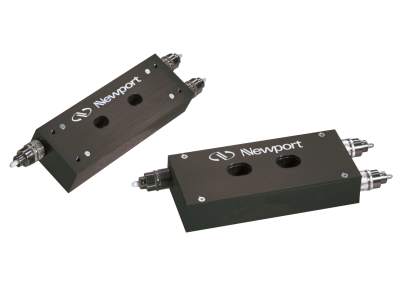

Newport's No-Tail benchtop circulators incorporate a rugged, encased design utilizing bulkhead connectors rather than loose pigtails to minimize fragile fibers from tangle and excess handling. The lack of fiber pigtails also decreases the optical path delay between the entrance and exit ports, which is an attractive feature for ultra-short pulses and interferometric applications.

Easy Mounting of Benchtop Circulators

Our No-Tail circulators mount easily to optical tables and can withstand frequent handling. Four strong magnets hold the rugged package securely onto steel surfaces. Two countersunk holes, spaced 25.4 mm (1 in.) apart and compatible with mounting patterns of optical tables, provide an additional mounting option.
