New Optical Table Frame Supports with Pneumatic Isolation

Products
Features
Resources
Contact Us

Overview

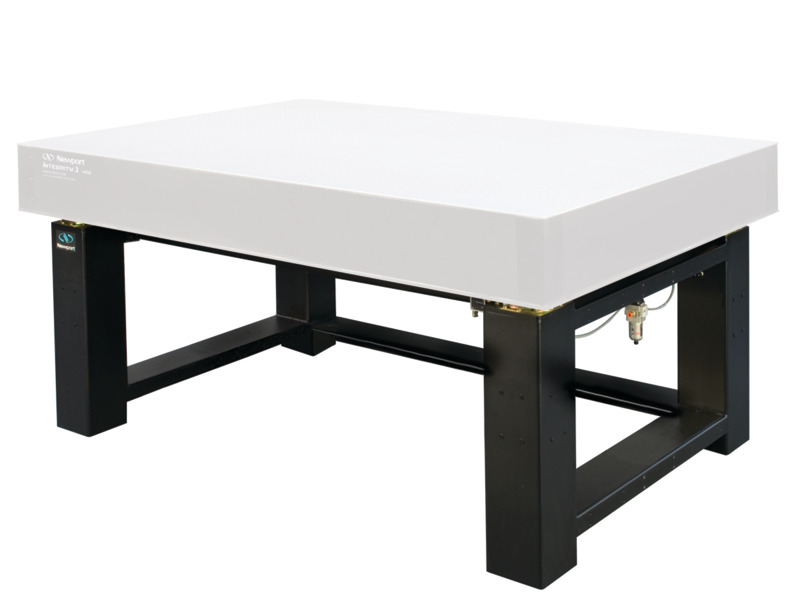

Optical Table Frame Supports with pneumatic isolators are engineered to provide optimal precision and stability in high-demand environments like microscopy and spectroscopy. These multi-functional support frames maximizes utility while ensuring structural rigidity. The frame integrates pneumatic isolators in the support legs to passively absorb vibrations and prevent external disturbances. They are constructed from all-steel materials for enhanced durability and stability, and is available for a wide range of table sizes.

Pneumatic isolators passively absorb vibrations, ensuring a stable platform for critical experiments
Available in 24 or 28 in. height to fit different workspace configurations
Compatible with table sizes ranging from 3 x 6 ft to 5 x 10 ft
A wide variety of compatible accessories, including overhead shelves, bottom shelves, and hip guards, allows for system personalization

See All Features

Products

Compare	Model	Compatibility	rankScore	Width	Length	Height	Availability	Featured Item
New TF-36-24-I Table Frame Support, Isolated, 3 x 6 ft. Tables, 24 in. Height Contact Us	New TF-36-24-I Table Frame Support, Isolated, 3 x 6 ft. Tables, 24 in. Height	UNIVERSAL	1.0	3 ft.	6 ft.	24 in.	Contact Us	New
New TF-36-28-I Table Frame Support, Isolated, 3 x 6 ft. Tables, 28 in. Height Contact Us	New TF-36-28-I Table Frame Support, Isolated, 3 x 6 ft. Tables, 28 in. Height	UNIVERSAL	1.0	3 ft.	6 ft.	28 in.	Contact Us	New
New TF-38-24-I Table Frame Support, Isolated, 3 x 8 ft. Tables, 24 in. Height Contact Us	New TF-38-24-I Table Frame Support, Isolated, 3 x 8 ft. Tables, 24 in. Height	UNIVERSAL	1.0	3 ft.	8 ft.	24 in.	Contact Us	New
New TF-38-28-I Table Frame Support, Isolated, 3 x 8 ft. Tables, 28 in. Height Contact Us	New TF-38-28-I Table Frame Support, Isolated, 3 x 8 ft. Tables, 28 in. Height	UNIVERSAL	1.0	3 ft.	8 ft.	28 in.	Contact Us	New
New TF-410-24-I Table Frame Support, Isolated, 4 x 10 ft. Tables, 24 in. Height Contact Us	New TF-410-24-I Table Frame Support, Isolated, 4 x 10 ft. Tables, 24 in. Height	UNIVERSAL	1.0	4 ft.	10 ft.	24 in.	Contact Us	New
New TF-410-28-I Table Frame Support, Isolated, 4 x 10 ft. Tables, 28 in. Height Contact Us	New TF-410-28-I Table Frame Support, Isolated, 4 x 10 ft. Tables, 28 in. Height	UNIVERSAL	1.0	4 ft.	10 ft.	28 in.	Contact Us	New
New TF-46-24-I Table Frame Support, Isolated, 4 x 6 ft. Tables, 24 in. Height Contact Us	New TF-46-24-I Table Frame Support, Isolated, 4 x 6 ft. Tables, 24 in. Height	UNIVERSAL	1.0	4 ft.	6 ft.	24 in.	Contact Us	New
New TF-46-28-I Table Frame Support, Isolated, 4 x 6 ft. Tables, 28 in. Height Contact Us	New TF-46-28-I Table Frame Support, Isolated, 4 x 6 ft. Tables, 28 in. Height	UNIVERSAL	1.0	4 ft.	6 ft.	28 in.	Contact Us	New
New TF-48-24-I Table Frame Support, Isolated, 4 x 8 ft. Tables, 24 in. Height Contact Us	New TF-48-24-I Table Frame Support, Isolated, 4 x 8 ft. Tables, 24 in. Height	UNIVERSAL	1.0	4 ft.	8 ft.	24 in.	Contact Us	New
New TF-48-28-I Table Frame Support, Isolated, 4 x 8 ft. Tables, 28 in. Height Contact Us	New TF-48-28-I Table Frame Support, Isolated, 4 x 8 ft. Tables, 28 in. Height	UNIVERSAL	1.0	4 ft.	8 ft.	28 in.	Contact Us	New
New TF-510-24-I Table Frame Support, Isolated, 5 x 10 ft. Tables, 24 in. Height Contact Us	New TF-510-24-I Table Frame Support, Isolated, 5 x 10 ft. Tables, 24 in. Height	UNIVERSAL	1.0	5 ft.	10 ft.	24 in.	Contact Us	New
New TF-510-28-I Table Frame Support, Isolated, 5 x 10 ft. Tables, 28 in. Height Contact Us	New TF-510-28-I Table Frame Support, Isolated, 5 x 10 ft. Tables, 28 in. Height	UNIVERSAL	1.0	5 ft.	10 ft.	28 in.	Contact Us	New
New TF-56-24-I Table Frame Support, Isolated, 5 x 6 ft. Tables, 24 in. Height Contact Us	New TF-56-24-I Table Frame Support, Isolated, 5 x 6 ft. Tables, 24 in. Height	UNIVERSAL	1.0	5 ft.	6 ft.	24 in.	Contact Us	New
New TF-56-28-I Table Frame Support, Isolated, 5 x 6 ft. Tables, 28 in. Height Contact Us	New TF-56-28-I Table Frame Support, Isolated, 5 x 6 ft. Tables, 28 in. Height	UNIVERSAL	1.0	5 ft.	6 ft.	28 in.	Contact Us	New
New TF-58-24-I Table Frame Support, Isolated, 5 x 8 ft. Tables, 24 in. Height Contact Us	New TF-58-24-I Table Frame Support, Isolated, 5 x 8 ft. Tables, 24 in. Height	UNIVERSAL	1.0	5 ft.	8 ft.	24 in.	Contact Us	New
New TF-58-28-I Table Frame Support, Isolated, 5 x 8 ft. Tables, 28 in. Height Contact Us	New TF-58-28-I Table Frame Support, Isolated, 5 x 8 ft. Tables, 28 in. Height	UNIVERSAL	1.0	5 ft.	8 ft.	28 in.	Contact Us	New

Show All

Specifications

Number of Isolators

4
Horizontal Isolation, Resonance

1.9 Hz
Horizontal Amplification at Resonance

12.5 dB
Horizontal Isolation, 5 Hz

80%
Horizontal Isolation, 10 Hz

94%

Vertical Isolation, Resonance

1.7 Hz
Vertical Amplification at Resonance

15 dB
Vertical Isolation, 5 Hz

86%
Vertical Isolation, 10 Hz

96%
Load Capacity

3200 lb

Features

Robust and Flexible Pneumatic Isolated Frame Support

The table frame support legs feature pneumatic isolators to passively absorb vibrations from the optical table's environment. The frame features leveling feet, and optional INT-C casters can be added for easy transportation of the system. A wide variety of accessories are compatible with the Table Frame Support and can be used to customize your optical table system.

High Performance Pneumatic Vibration Isolators

The pneumatic vibration isolators in the supporting frame feature our patented Stabilizer™ hybrid chamber design which consists of a small size initial chamber and a second damping chamber connected by a laminar flow disk. Because the initial chamber is reduced dramatically in size, it forces the isolator to use the second chamber as part of the compliance volume, which greatly increases the compliance volume for a given package size, and greatly lowers the natural frequency. Besides, our exclusive incorporation of the laminar flow damping element creates better linkage between piston motion and damping chamber air flow, which generates a higher damping force for a given piston displacement for faster, more efficient damping. It also lowers the amplification at resonance and improves isolation bandwidth and settling time. The vibration isolation performance is characterized by transmissibility curve which shows the mechanical filtering properties for the isolator leg - how much floor vibration will be transmitted through the leg to the table top.

Optical Table System Accessories

We offer a compete set of optical table system accessories to free up space on your optical table or enclose a table top experiment of application. Accessories include:
