Overview

NP Series neoprene isolation mounts are the ideal solution to isolate high frequency vibrations generated in the environment or from mechanical equipment. Their patent pending concentric ring design provides good support, isolation, and damping performance.

Affordable neoprene isolators for instruments or small machinery
Concentric ring design provides good support & damping performance
Counterbored mounting holes allow easy mounting

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Isolator Height	Load Capacity per Isolator	Base size	Availability	Featured Item	Price		Brand
		NP-20A Vibration Isolation Mount, Neoprene, 25 lbs. load capacity $44 Contact Us	NP-20A Vibration Isolation Mount, Neoprene, 25 lbs. load capacity	UNIVERSAL	0.0	1.0	0.0		0.0	20 mm	11.3 kg	Ø50 mm	Contact Us		$44		Newport
		NP-20A-P Vibration Isolation Mount, Neoprene, Top Plate, 25 lb., M6 or 1/4-20 $55 In Stock	NP-20A-P Vibration Isolation Mount, Neoprene, Top Plate, 25 lb., M6 or 1/4-20	UNIVERSAL	0.0	1.0	0.0		0.0	26.4 mm	11.3 kg	Ø50 mm	In Stock		$55		Newport

Show All

Features

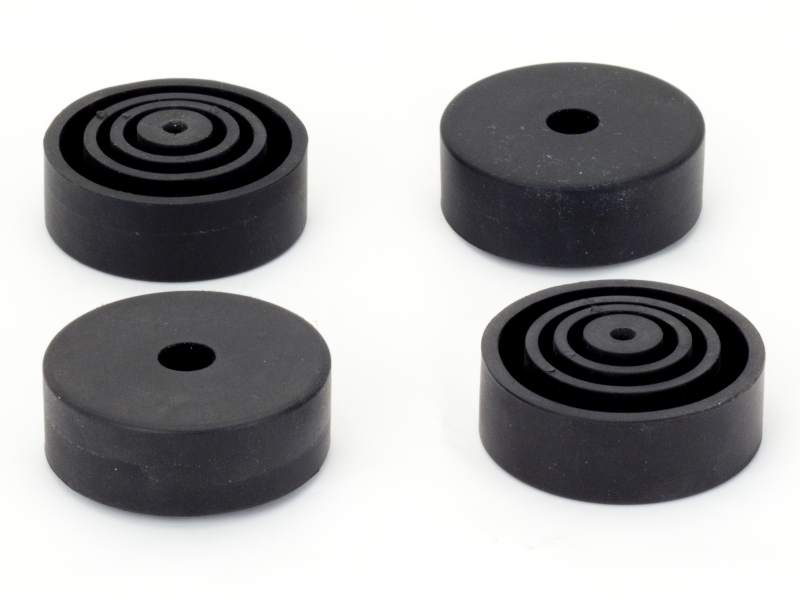

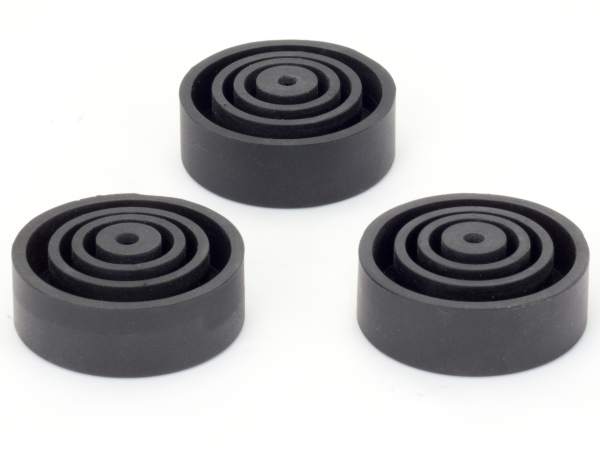

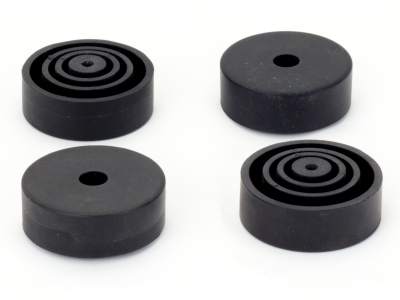

Uniquely Designed Concentric Ring

Those neoprene isolation mounts are specially designed with patent pending concentric rings that decreasing in height, engaging the load gradually as the elastomer material deflects. Compared to neoprene pads or other similar isolators, this special design provides better support, isolation and damping performance for applications that requires basic vibration isolation and damping.

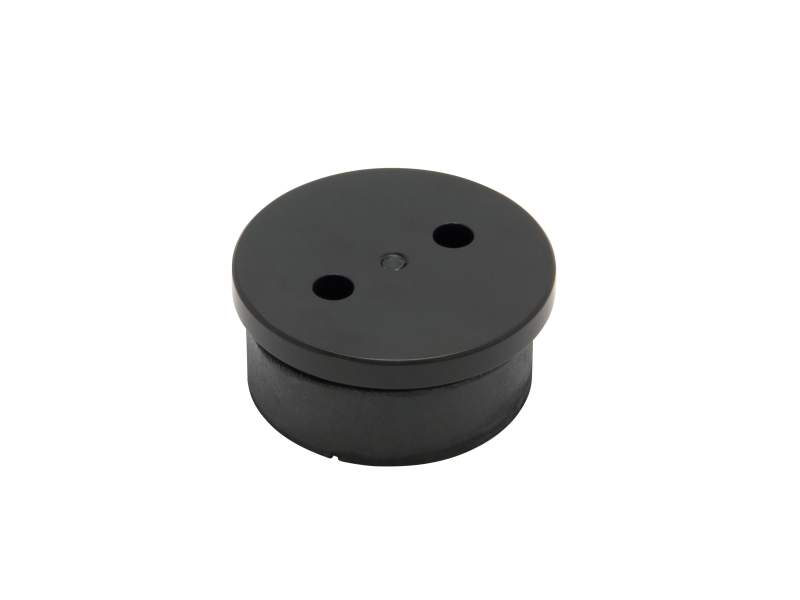

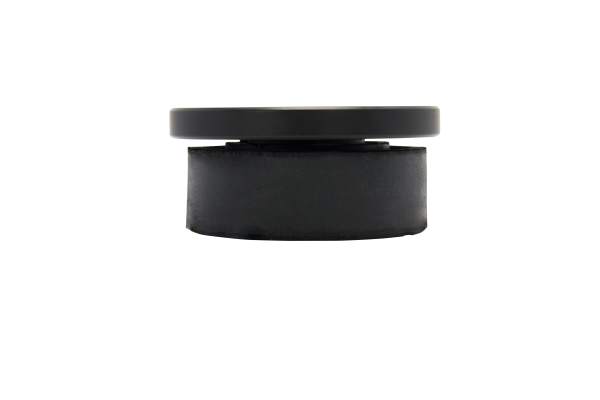

Optional Aluminum Top Plate

We offer neoprene isolation mounts with an aluminum top plate so that the isolator load will be distributed more evenly on the surface of the mount, providing better isolation performance. This is especially useful for those instruments that have small floor/tabletop contact areas, or for users who would like to attach the mount securely to the bottom of their instrument.

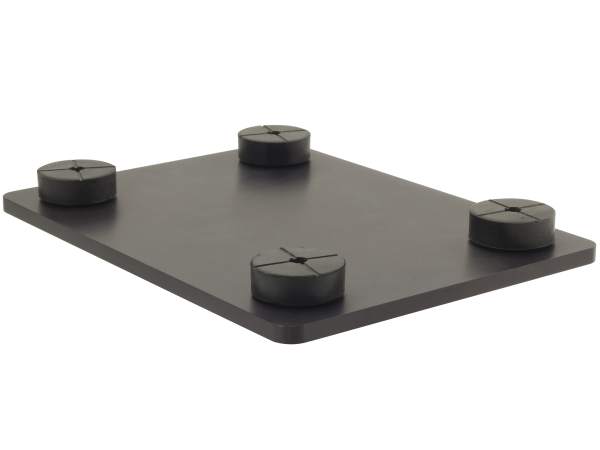

Affordable General Isolation Platforms

We offer lab isolation platforms that feature 4 of Newport's uniquely designed neoprene isolator feet. It is designed for less demanding applications to isolate small equipment from vibrations. The shown LIP175 is suitable for isolating lab equipment such as balances, petri dishes, smaller low to medium power microscopes when environmental conditions are impacting image quality.
