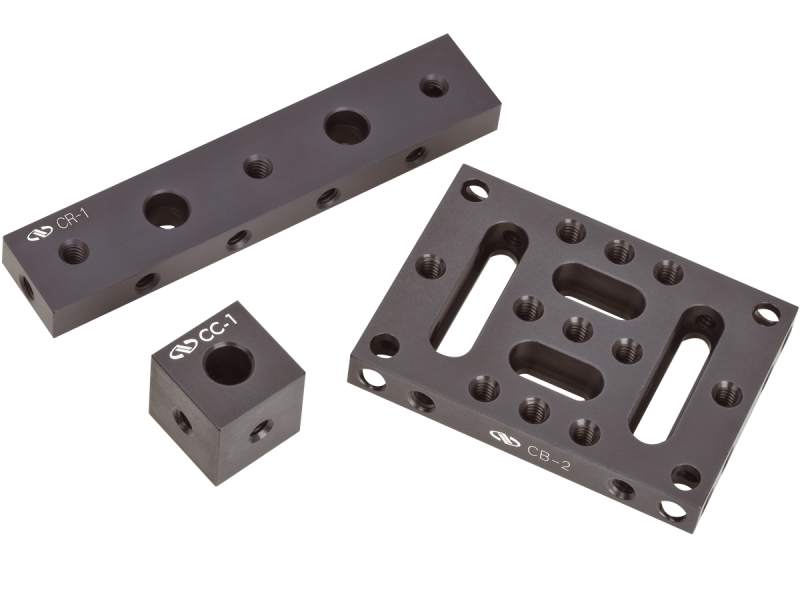

Modular construction bases consists of a few simple aluminum building blocks with lots of versatility. With just a cube, a rail, and a base, applications are limited only by your imagination.

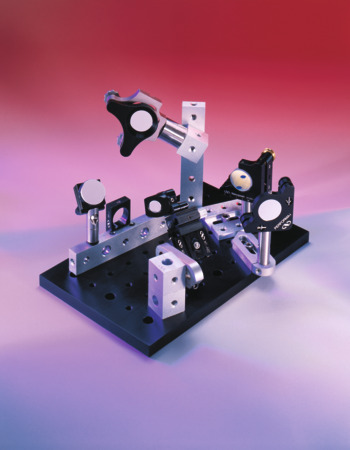

Construct rigid optical assemblies quickly and easily
Additional CAD file downloads are not available for this product.
modular-construction-bases - Drawings
Additional drawings are not available for this product.
Features
Position Optical Mounts Wherever Needed
Position optical mounts where you need them using modular construction elements to build optical assemblies.

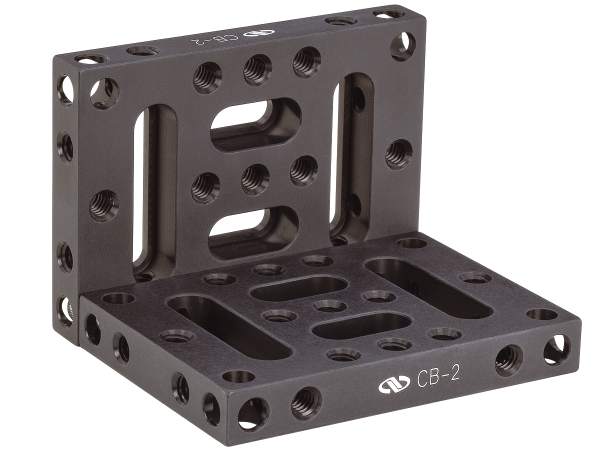

Construction Base
The construction base has a two-piece design that allows it to be used as a bracket or a base. The base has plenty of tapped holes on all the surfaces as well as clearance holes and slots for 1/4-20 (M6) screws. Combine it with the construction cubes and rails to construct rigid optical assemblies quickly and easily.

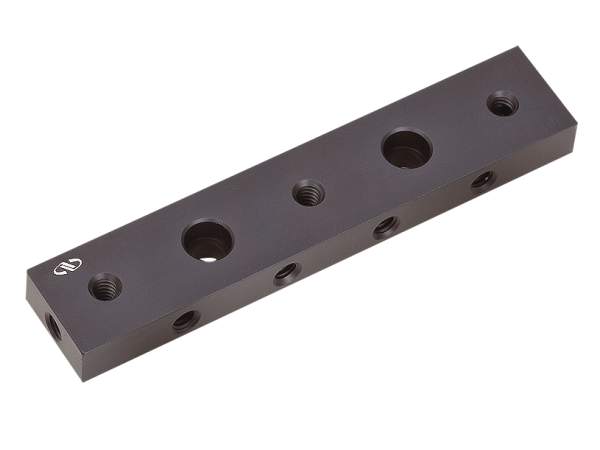

Construction Rail
The construction rail has tapped holes on all surfaces as well as counterbored clearance holes for 1/4-20 (M6) screws. The rail can be attached to a breadboard, a cube, another component, or another rail for modular versatility.

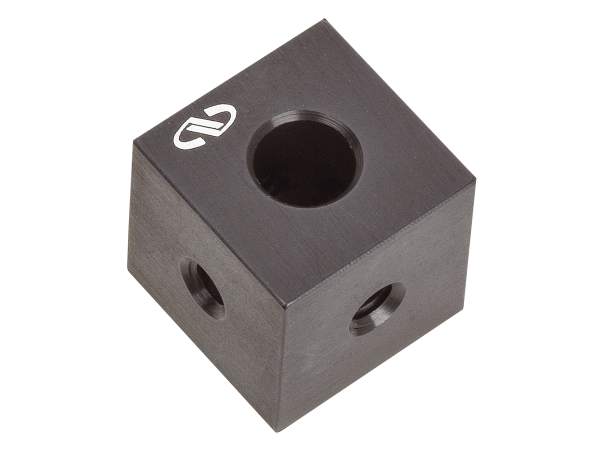

Construction Cube
The construction cube has two tapped holes and a counterbored clearance hole for 1/4-20 (M6) screws. This basic building block can be bolted to a breadboard, a rail, another component, or another cube to construct unique assemblies.
