Compare Model Drawings, CAD & Specs Type Cleave Angle Cladding Diameter Availability Price
$2,279
In Stock
Fiber Cleaver <0.5° typical 125 µm with 250-900 µm coating
In Stock
In Stock
Angled 8-Fiber Ribbon Cleaver 8º average (0.35° standard deviation) 125 µm with ribbon coating
In Stock

Features

Manual Cleaver with Ease-of-Use and Long Life

The Model F-BK3 Fiber Optic Cleaver offers precise end face quality with clean edges and very little angle, free of lips, chips or hackle for better splice performance. The diamond edge provides over 48,000 cleaves without replacement. It is an excellent choice for portability and ease of use.

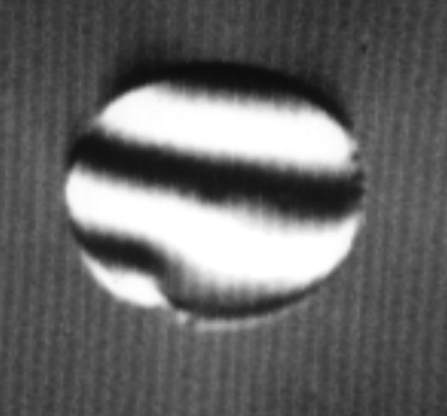

A typical F-BK3 cleave is clean, flat and perpendicular.

Rugged Fiber Cleaver for Advanced Performance

The F-CLX-0-3 perpendicular fiber cleaver is rugged and simple to operate, producing very high quality cleaves. Once the fiber is placed in the V-groove, the patented mechanism clamps, tenses, scribes and cleaves the fiber with a simple downward push of the top lever. This cleaver offers a minimum cleave length of only 3 mm, provides a typical end angle of 0.25° and has excellent repeatability. Other features include a long-life blade angled to reduce stresses during cleaving, up to 20,000 cleaves and a scale for gauging cleave lengths.

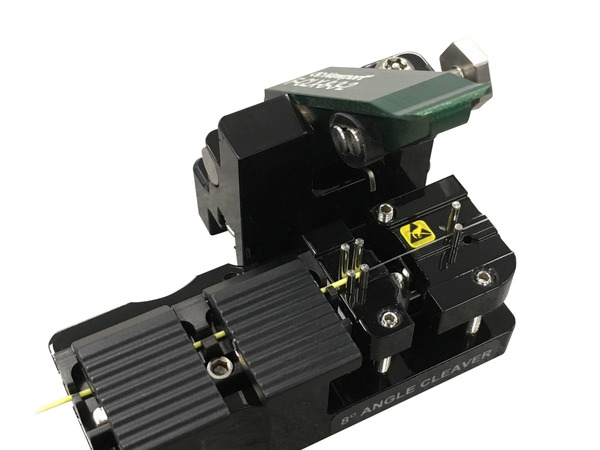

Angled Ribbon Cleaver

The F-RCL-8-8F angled ribbon cleaver cleaves 8-fiber ribbons for pigtailing to arrays of photonic components. It cleave all fibers in the ribbon at 8° (0.35° standard deviation) with a cleave length set at 7-10 mm.
