Compare Model Drawings, CAD & Specs Flange Size Free Length Compressed Length Static Bend Radius Spring Rate Availability Price
$136.29
In Stock
NW16 250 mm 163 mm 1.625 in. 27 lb/in.
In Stock
$153.62
In Stock
NW25 250 mm 163 mm 1.375 in. 16 lb/in.
In Stock
$173.25
In Stock
NW40 250 mm 158 mm 2.5 in. 8.6 lb/in.
In Stock
$214.83
In Stock
NW50 250 mm 179 mm 3.25 in. 13 lb/in.
In Stock
$204.44
In Stock
NW16 500 mm 313 mm 1.625 in. 12 lb/in.
In Stock
$240.24
In Stock
NW25 500 mm 313 mm 1.375 in. 7.3 lb/in.
In Stock

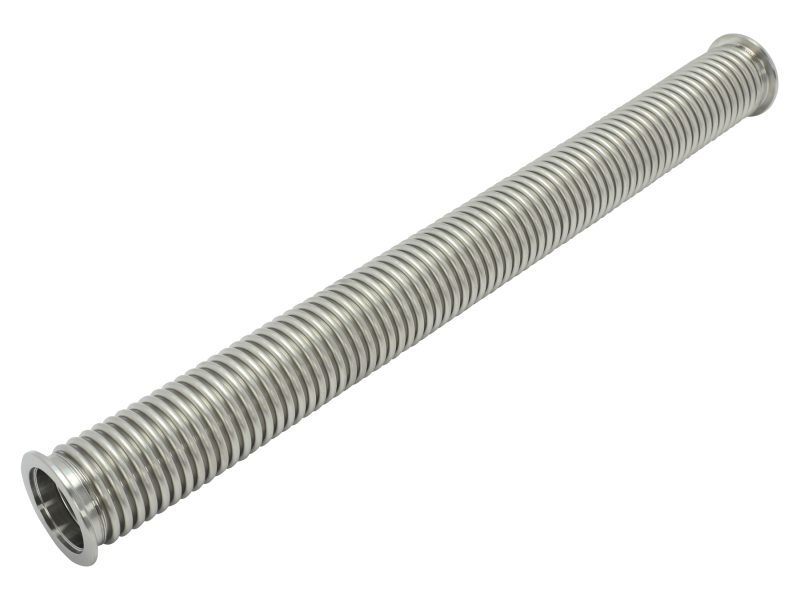

ISO-KF Vacuum Flange Hose
$255.26
In Stock
NW40 500 mm 297 mm 2.5 in. 3.9 lb/in.
In Stock
$297.99
In Stock
NW50 500 mm 342 mm 3.25 in. 5.9 lb/in.
In Stock
$346.50
In Stock
NW16 1000 mm 613 mm 1.625 in. 5.8 lb/in.
In Stock
$395.01
In Stock
NW25 1000 mm 613 mm 1.375 in. 3.4 lb/in.
In Stock
$406.56
In Stock
NW40 1000 mm 571 mm 2.5 in. 1.9 lb/in.
In Stock
$589.05
In Stock
NW50 1000 mm 667 mm 3.25 in. 2.9 lb/in.
In Stock
$196.35
In Stock
NW16 305 mm 199 mm 1.625 in. 21 lb/in.
In Stock
$202.69
In Stock
NW25 305 mm 199 mm 1.375 in. 14 lb/in.
In Stock
$228.69
In Stock
NW40 308 mm 200 mm 2.5 in. 7 lb/in.
In Stock
$288.38
In Stock
NW16 612 mm 460 mm 1.625 in. 9 lb/in.
In Stock
$242.55
In Stock
NW25 610 mm 460 mm 1.375 in. 6.5 lb/in.
In Stock
$287.60
In Stock
NW40 611 mm 460 mm 2.5 in. 3 lb/in.
In Stock
$309.54
In Stock
NW50 612 mm 460 mm 3.25 in. 5 lb/in.
In Stock
$259.88
In Stock
NW50 303 mm 219 mm 3.25 in. 12 lb/in.
In Stock

Specifications

  • Component Type
    Thin Metal Wall Vacuum Hose
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Wall Thickness
    0.006 in. (0.15 mm)
