Compare Model Drawings, CAD & Specs Component Type Flange Size Length Static Bend Radius Spring Rate Availability Price
100315901
$85
In Stock
 100315901 Metal Wall Vacuum Hose NW16 250 mm 2.125 in. 256 lb/in.
In Stock
 $85
100315903
$76
In Stock
 100315903 Metal Wall Vacuum Hose NW25 250 mm 2.875 in. 224 lb/in.
In Stock
 $76
100315905
$96
In Stock
 100315905 Metal Wall Vacuum Hose NW40 250 mm 3.5 in. 220 lb/in.
In Stock
 $96
100315906
$117
In Stock
 100315906 Metal Wall Vacuum Hose NW50 250 mm 5.25 in. 220 lb/in.
In Stock
 $117
100316001
$85
In Stock
 100316001 Metal Wall Vacuum Hose NW16 500 mm 2.125 in. 128 lb/in.
In Stock
 $85
100316003
$112
In Stock
 100316003 Metal Wall Vacuum Hose NW25 500 mm 2.875 in. 112 lb/in.
In Stock
 $112
100316005
$176
In Stock
 100316005 Metal Wall Vacuum Hose NW40 500 mm 3.5 in. 110 lb/in.
In Stock
 $176
100316006
$216
In Stock
 100316006 Metal Wall Vacuum Hose NW50 500 mm 5.25 in. 110 lb/in.
In Stock
 $216
100316111
$144
In Stock
 100316111 Metal Wall Vacuum Hose NW16 1000 mm 2.125 in. 64 lb/in.
In Stock
 $144
100316113
$172
In Stock
 100316113 Metal Wall Vacuum Hose NW25 1000 mm 2.875 in. 56 lb/in.
In Stock
 $172
100316115
$285
In Stock
 100316115 Metal Wall Vacuum Hose NW40 1000 mm 3.5 in. 55 lb/in.
In Stock
 $285
100316116
$305
In Stock
 100316116 Metal Wall Vacuum Hose NW50 1000 mm 5.25 in. 55 lb/in.
In Stock
 $305

Specifications

  • Component Type

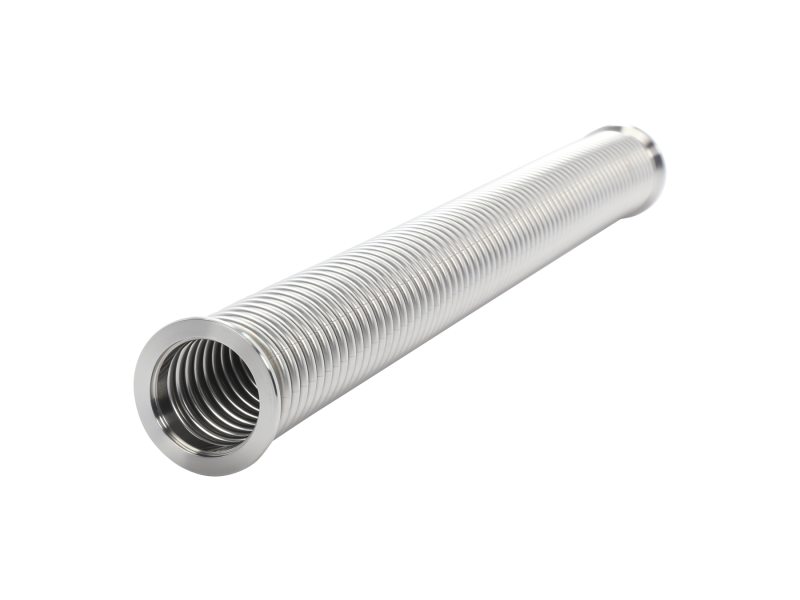

    Thick Metal Wall Vacuum Hose
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Wall Thickness
    0.012 in. (0.30 mm)
