Compare Model Drawings, CAD & Specs Flange Size Free Length Compressed Length Spring Rate Static Bend Radius Availability Price
100314911G
$57.16
In Stock
 100314911G NW16 100 mm 78 mm 56 lb/in. 1.125 in.
In Stock
 $57.16
100314913G
$59.42
In Stock
 100314913G NW25 100 mm 78 mm 44 lb/in. 1.375 in.
In Stock
 $59.42
100314915G
$71.55
In Stock
 100314915G NW40 100 mm 74 mm 32 lb/in. 2.5 in.
In Stock
 $71.55
100314916G
$87.32
In Stock
 100314916G NW50 100 mm 79 mm 32 lb/in. 3.25 in.
In Stock
 $87.32

Specifications

  • Component Type

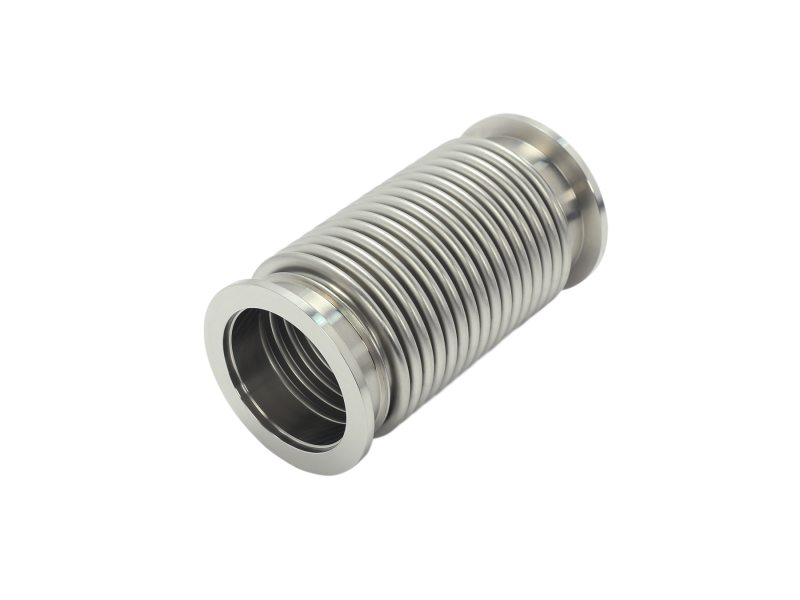

    Bellows Vacuum Hose
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Wall Thickness
    0.006 in. (0.15 mm)
  • Free Length
    3.94 in. (100 mm)
