Specifications

Note: Specifications below are common to all products presented. See Individual product details for complete information.

  • Mounting Hole Type
    1/4-20 (M6)
  • Surface Flatness
    ± 0.004 in. (0.1 mm) over 2 ft. (600 mm) square

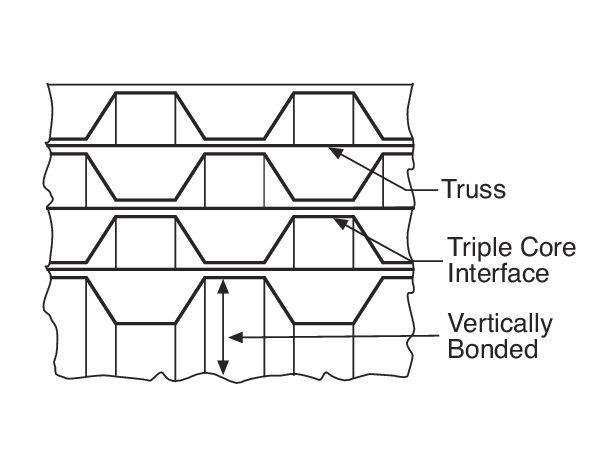

  • Broadband Damping
    Constrained layer core, damped working surface and composite edge finish
  • Tuned Damping
    1 precision tuned dampers
  • Mounting Hole Pattern
    1 in. (25 mm) grid
  • Mounting Hole Borders
    0.5 in. (12.5 mm)
  • Working Surface
    400 series ferromagnetic stainless steel
  • Top and Bottom Skins
    3/16 in. (4.8 mm) thick with integrated damping layer
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Alphanumeric Grid Labels
    No


Features

Integrity 3 VCS - Tuned Damping at Minimum Cost

The Integrity 3 VCS features one precision tunable damper for increased damping performance compared to the Integrity 2 VCS.

Precision Tunable Tabletop Dampers

Newport optical tables have been using tunable mass dampers for decades and the damper designs have evolved over the years. The latest version of the design eliminates the use of oil, and use a proprietary mass-spring mechanism to allow better damping performance, more precise and easier tuning to the exact frequency needed to damp the resonance. This patented design (US patent 8857585) further improves damping performance by 3-5x compared to the previous generation design - which was already superior than competitor's broadband dampers. The precisely tuned dampers work from as low as 25 Hz and go all the way up to 525 Hz, creating opportunity for optimum damping on larger optical tables, the resonances of which often fall outside of competitor's broadband frequency range. Once tuned at factory the dampers are locked securely and the frequency would not shift during shipping of the table.

Various Accessories for Lab Utility

Integrity VCS™ family is now fully compatible with Integrity VCS System Accessories as well as SmartTable OTS Accessories. Get hip guards, overhead shelf and more to turn your optical table system into a versatile workstation for your various applications.

Robust and Flexible Frame Support

The Integrity VCS optical table system features a sturdy and multi-functional support frame that is designed to maximize utility, minimize space occupied and optimize structural rigidity. It is offered with a rigid frame (-N) or pneumatic isolators (-A). The INT-ISL800-KT upgrade kit can be used to upgrade a rigid frame to pneumatic isolation in the field.

Integrity VCS Installation Video

Integrity VCS installation procedures can be seen in this video.

Custom Configurations

Custom configurations are also available. Contact Newport Sales for more information.
