For critical positioning applications requiring tight positioning accuracy and repeatability of a motion system, flatness of the mounting surface becomes a major factor. Polished granite surfaces are among the flattest, commercially available structures.
High Performance with surface flatness within 2 µm
Additional CAD file downloads are not available for this product.
gb-series-granite-base-plates - Drawings
Additional drawings are not available for this product.
Features
Compensates for Non-flat Optical Tables

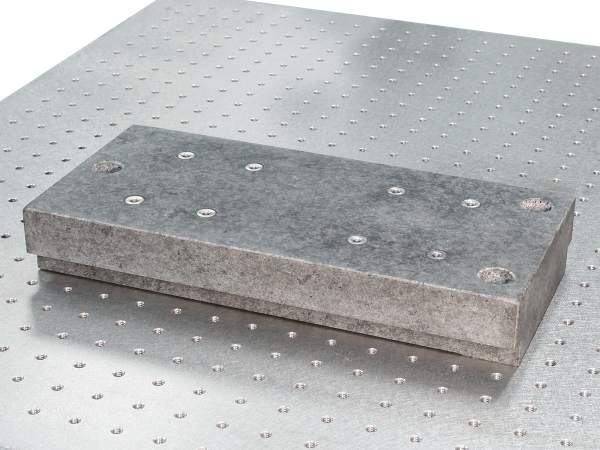

The GB series granite base plates feature 3-point mounting, to offset non-flat tables. Edge handles facilitate handling and locating the base plate on the work surface.
Compatible with XM Series Linear Stages
Granite’s tight flatness tolerance and extreme hardness make it an attractive option to complement Newport’s Ultra-Precision XM Series Linear Motor Stages.
