Compare Model Drawings, CAD & Specs Mounting Holes Width Length Availability Price

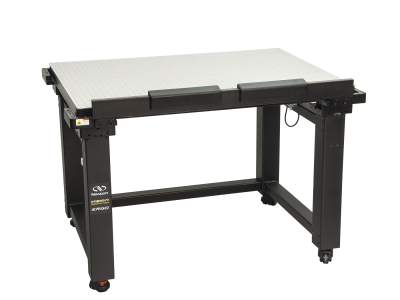

Ergonomic Vision Isostation, 36 x 36 x 2.3 in. PG Breadboard, I-325
$5,227
1/4-20 36 in. 36 in.
Ergonomic Vision Isostation, 36 x 48 x 2.3 in. PG Breadboard, I-325
$5,695
1/4-20 36 in. 48 in.
Ergonomic Vision Isostation, 36 x 60 x 2.3 in. PG Breadboard, I-325
$6,045
1/4-20 36 in. 60 in.
Ergonomic Vision Isostation, 900 x 900 x 59 mm PG Breadboard, I-325
$5,227
M6 900 mm 900 mm
Ergonomic Vision Isostation, 900 x 1200 x 59 mm PG Breadboard, I-325
$5,695
M6 900 mm 1200 mm
Ergonomic Vision Isostation, 900 x 1500 x 59 mm PG Breadboard, I-325
$6,166
M6 900 mm 1500 mm

Specifications

  • Type
    Vision Isostation Seated Optical Workstation
  • Platform
    Precision Grade Optical Breadboard
  • Modal Damping
    Patented modal dampers in all four side panels
  • Broadband Damping
    Constrained layer core, damped working surface, and composite edge finish
  • Thickness
    2.3 in. (59 mm)
  • Working Surface
    4.8 mm thick ferromagnetic 430 stainless steel
  • Surface Flatness
    ±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
  • Core Design
    Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
  • Bottom Skin Material
    3.4 mm thick carbon steel
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Pattern
    1.0 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Workstation Supports
    I-325 Pneumatic Isolators
  • Load Capacity
    1300 lb (590 kg)
