Compare Model Drawings, CAD & Specs Mounting Holes Width Length Thickness Availability Price

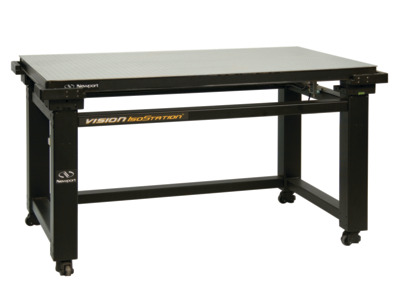

vision isostation optical breadboard workstation
Optical Workstation, 30 x 30 x 2.3 in. SG Breadboard, I-325 Isolators
$4,019
1/4-20 30 in. 30 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 30 x 30 x 4.3 in. SG Breadboard, I-325 Isolators
$4,186
1/4-20 30 in. 30 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 30 x 36 x 2.3 in. SG Breadboard, I-325 Isolators
$4,119
In Stock
1/4-20 30 in. 36 in. 2.3 in.
In Stock
vision isostation optical breadboard workstation
Optical Workstation, 30 x 36 x 4.3 in. SG Breadboard, I-325 Isolators
$4,294
1/4-20 30 in. 36 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 30 x 48 x 2.3 in. SG Breadboard, I-325 Isolators
$4,468
1/4-20 30 in. 48 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 30 x 48 x 4.3 in. SG Breadboard, I-325 Isolators
$4,782
1/4-20 30 in. 48 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 36 x 2.3 in. SG Breadboard, I-325 Isolators
$4,565
1/4-20 36 in. 36 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 36 x 4.3 in. SG Breadboard, I-325 Isolators
$4,944
1/4-20 36 in. 36 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 48 x 2.3 in. SG Breadboard, I-325 Isolators
$4,845
1/4-20 36 in. 48 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 48 x 4.3 in. SG Breadboard, I-325 Isolators
$5,374
1/4-20 36 in. 48 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 60 x 2.3 in. SG Breadboard, I-325 Isolators
$5,333
1/4-20 36 in. 60 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 60 x 4.3 in. SG Breadboard, I-325 Isolators
$5,729
1/4-20 36 in. 60 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 72 x 2.3 in. SG Breadboard, I-325 Isolators
$5,803
1/4-20 36 in. 72 in. 2.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 36 x 72 x 4.3 in. SG Breadboard, I-325 Isolators
$6,146
1/4-20 36 in. 72 in. 4.3 in.
vision isostation optical breadboard workstation
Optical Workstation, 750 x 750 x 59 mm SG Breadboard, I-325 Isolators
$4,100
M6 750 mm 750 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 750 x 750 x 110 mm SG Breadboard, I-325 Isolators
$4,270
M6 750 mm 750 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 750 x 900 x 59 mm SG Breadboard, I-325 Isolators
$4,202
M6 750 mm 900 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 750 x 900 x 110 mm SG Breadboard, I-325 Isolators
$4,381
M6 750 mm 900 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 750 x 1200 x 59 mm SG Breadboard, I-325 Isolators
$4,559
M6 750 mm 1200 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 750 x 1200 x 110 mm SG Breadboard, I-325 Isolators
$4,879
M6 750 mm 1200 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 900 x 59 mm SG Breadboard, I-325 Isolators
$4,658
M6 900 mm 900 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 900 x 110 mm SG Breadboard, I-325 Isolators
$5,044
M6 900 mm 900 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1200 x 59 mm SG Breadboard, I-325 Isolators
$4,943
M6 900 mm 1200 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1200 x 110 mm SG Breadboard, I-325 Isolators
$5,483
M6 900 mm 1200 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1500 x 59 mm SG Breadboard, I-325 Isolators
$5,440
M6 900 mm 1500 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1500 x 110 mm SG Breadboard, I-325 Isolators
$5,843
M6 900 mm 1500 mm 110 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1800 x 59 mm SG Breadboard, I-325 Isolators
$5,803
M6 900 mm 1800 mm 59 mm
vision isostation optical breadboard workstation
Optical Workstation, 900 x 1800 x 110 mm SG Breadboard, I-325 Isolators
$6,269
M6 900 mm 1800 mm 110 mm

Specifications

  • Type
    Vision Isostation Optical Workstation
  • Platform
    Scientific Grade Optical Breadboard
  • Modal Damping
    No
  • Broadband Damping
    Constrained layer core, damped working surface, and composite edge finish
  • Working Surface
    4.8 mm thick ferromagnetic 430 stainless steel
  • Surface Flatness
    ±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
  • Core Design
    Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
  • Bottom Skin Material
    3.4 mm thick carbon steel
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Pattern
    1.0 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Workstation Supports
    I-325 Pneumatic Isolators
  • Load Capacity
    1300 lb (590 kg)
