Optical Workstation, 36 x 48 x 2.3 in. SG Breadboard, I-325 Isolators
Optical Workstation, 36 x 48 x 2.3 in. SG Breadboard, I-325 Isolators
Model: VIS3648-SG2-325A
4 Weeks
Product Series Overview
4.8 mm Skin Vision IsoStation™ with Pneumatic IsolationThe VIS3648-SG2-325A is a 36 in. x 48 in. x 33.8 in. working height Vision IsoStation vibration isolation workstation with a 2.3 in. thick SG Series breadboard and I-325 Series pneumatic isolators that provide a 1300 lb. gross load capacity. The Vision IsoStation workstation provides effective vibration isolation for optical microscopes, optical experiments and sensitive instrumentation. Newport's I-325 Series pneumatic isolators have been proven to reduce transmitted vertical and horizontal vibrations by 85% or more after 5Hz and by more than 95% after 10Hz. Perfect for smaller laboratories, the IsoStation's 30 in. width fits easily into the most compact spaces and through standard doorways.
The Vision IsoStation features a unique platform interface that acts as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features integrated float height indicators and frame bubble levels to make set-up and installation easier than ever. Integrated leveling feet and casters are included with the base model and a new roll-off crate make the Vision IsoStation easy to unpack, install and move, even for one person.
The VIS3648-SG2-325A is compatible with a wide range of new Vision IsoStation accessories such as equipment shelves, monitor arms, a keyboard shelf, Faraday cage, hip guard, and integrated accessory surfaces allowing you to put everything you need within arm's reach.. All of these new features and accessories have been designed specifically to improve ease-of-installation, set-up and lab space utilization.
The Vision IsoStation features a unique platform interface that acts as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features integrated float height indicators and frame bubble levels to make set-up and installation easier than ever. Integrated leveling feet and casters are included with the base model and a new roll-off crate make the Vision IsoStation easy to unpack, install and move, even for one person.
The VIS3648-SG2-325A is compatible with a wide range of new Vision IsoStation accessories such as equipment shelves, monitor arms, a keyboard shelf, Faraday cage, hip guard, and integrated accessory surfaces allowing you to put everything you need within arm's reach.. All of these new features and accessories have been designed specifically to improve ease-of-installation, set-up and lab space utilization.
Specifications
- TypeIsolated Workstation
- PlatformSG Series Breadboard
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Width36 in.
- Length48 in.
- Thickness2.3 in.
- Working Surface3/16 in. thick 400 series ferromagnetic stainless steel
- Surface Flatness±0.004 in. over 2 ft. square
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
- Bottom Skin Material0.134 in. thick carbon steel
- Mounting Holes1/4-20
- Mounting Hole Pattern1.0 in. grid
- Mounting Hole Borders0.5 in.
- Mounting Hole TypeCut (not rolled) threads with countersink
- Hole Sealing TypeEasy clean conical cup 0.75 in. deep, non-corrosive high impact polymer material
- Load Capacity1300 lb
- Load Capacity per Isolator325 lb
- Working Surface Height33.8 in.
- Height Adjustment±0.2 in.
- 1.2 Hz
- 90%
- 98%
- 1.5 Hz
- 90%
- 98%
- Maximum Air Pressure85 psi
- Releveling Accuracy±0.010 in.
- 470 lb
Resources & Downloads
3D Product Models
Other
VIS3648-SG2-325A RoHS Certificate(279.9 kB, PDF)
2D Product Drawings
Vision IsoStation 48 mm Skin Drawing(85.6 kB, PDF)
Manuals
Vision IsoStation User Manual Rev. A(745.7 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | VIS-HG-36Front Support Bar, Vision Isostation, 36 in. Length | In Stock | ||||
 | VIS-FDC-3648Faraday Cage, 39 in. x 54 in. x 4 ft. Tall, Compatible with Vision Isostation (M-)VIS-3648-XX | |||||
 | VIS-FPAMounting Arm, Flat Panel Monitor, Vision Isostation | 2 Weeks | ||||

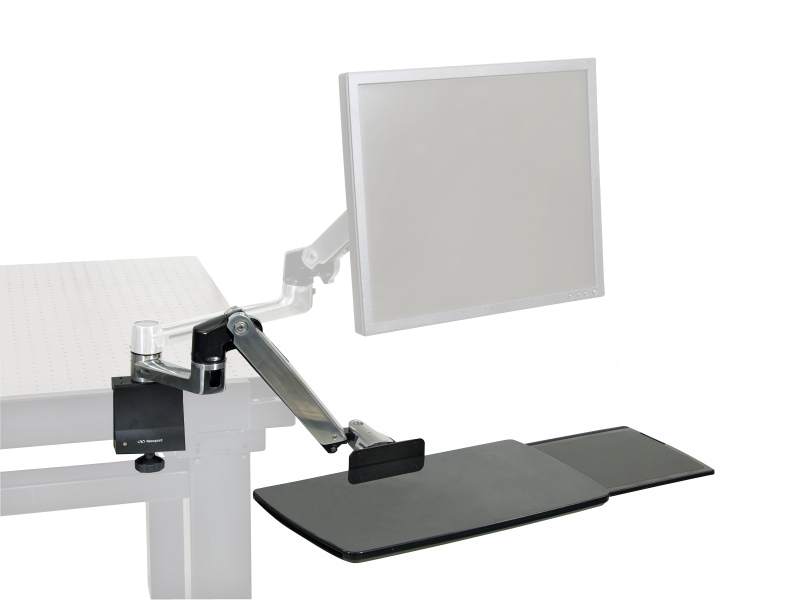

 | VIS-KBAKeyboard Mounting Shelf, Vision Isostation | 2 Weeks | ||||
