Optical Workstation, 900 x 1500 x 110 mm SG Breadboard, I-325 Isolators
Optical Workstation, 900 x 1500 x 110 mm SG Breadboard, I-325 Isolators
Model: M-VIS3660-SG4-325A
4 Weeks
Product Series Overview

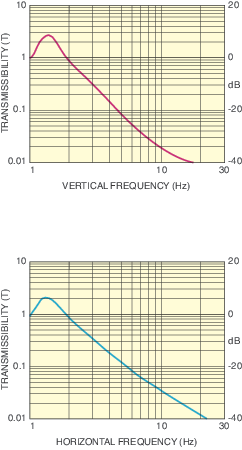

4.8 mm Skin Vision IsoStation™ with Pneumatic IsolationThe M-VIS3660-SG4-325A is a metric 900 mm x 1500 mm x 909 mm working height Vision IsoStation vibration isolation workstation with a 110 mm thick SG Series breadboard and I-325 Series pneumatic isolators that provide a 590 kg gross load capacity. The Vision IsoStation workstation provides effective vibration isolation for optical microscopes, optical experiments and sensitive instrumentation. Newport's I-325 Series pneumatic isolators have been proven to reduce transmitted vertical and horizontal vibrations by 90% or more after 5 Hz and by more than 98% after 10 Hz. Perfect for smaller laboratories, the IsoStation's 900 mm width fits easily into the most compact spaces and through standard doorways.
The Vision IsoStation features a unique platform interface that acts as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features integrated float height indicators and frame bubble levels to make set-up and installation easier than ever. Integrated leveling feet and casters are included with the base model and a new roll-off crate make the Vision IsoStation easy to unpack, install and move, even for one person.
The M-VIS3660-SG4-325A is compatible with a wide range of new Vision IsoStation accessories such as equipment shelves, monitor arms, a keyboard shelf, Faraday cage, hip guard, and integrated accessory surfaces allowing you to put everything you need within arm's reach. All of these new features and accessories have been designed specifically to improve ease-of-installation, set-up and lab space utilization.
The Vision IsoStation features a unique platform interface that acts as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features integrated float height indicators and frame bubble levels to make set-up and installation easier than ever. Integrated leveling feet and casters are included with the base model and a new roll-off crate make the Vision IsoStation easy to unpack, install and move, even for one person.
The M-VIS3660-SG4-325A is compatible with a wide range of new Vision IsoStation accessories such as equipment shelves, monitor arms, a keyboard shelf, Faraday cage, hip guard, and integrated accessory surfaces allowing you to put everything you need within arm's reach. All of these new features and accessories have been designed specifically to improve ease-of-installation, set-up and lab space utilization.
Resources & Downloads
Other
M-VIS3660-SG4-325A RoHS Certificate(279.8 kB, PDF)
2D Product Drawings
Vision IsoStation 48 mm Skin Drawing(85.6 kB, PDF)
Manuals
Vision IsoStation User Manual Rev. A(745.7 kB, PDF)
