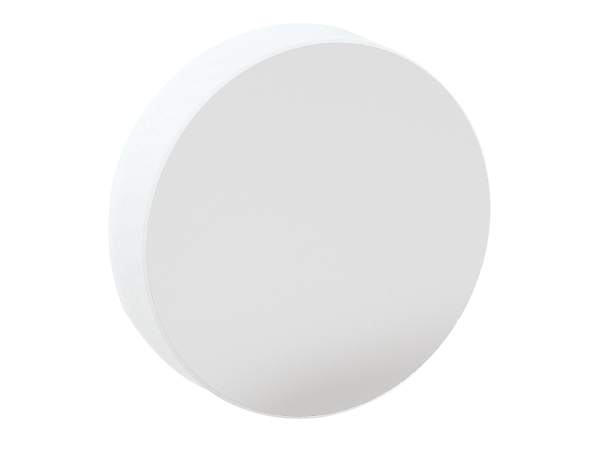

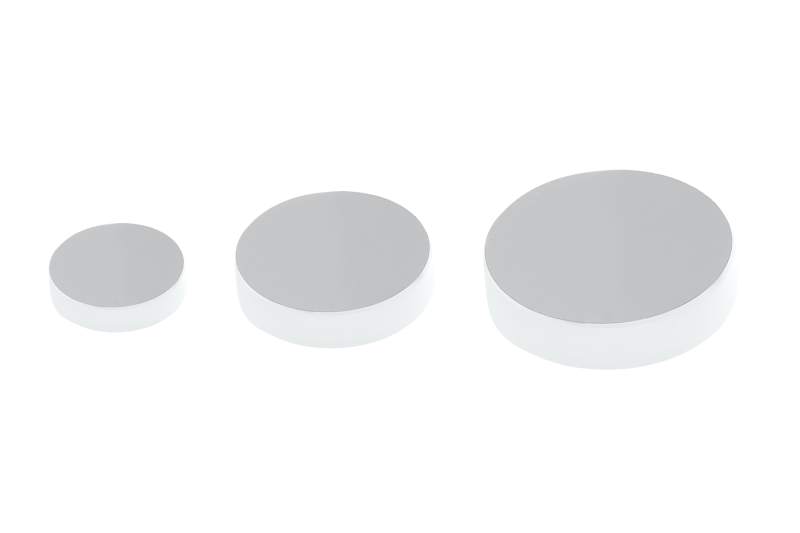

BroadBeam Ultra-Broadband High Reflector Mirror

Compare	Model	Compatibility	rankScore	Wavelength Range	Diameter	Thickness	Pack Quantity	Availability	Price	Brand
05Q20BB.HR2 Dielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 20-10 $155 In Stock	05Q20BB.HR2 Dielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 20-10	UNIVERSAL	1.0	350-1100 nm	12.7 mm	3.1 mm		In Stock	$155	Newport
05Q20BB.HR2-PK Mirror Pack, Ultra-Broadband Dielectric, 0.5 in., 0-50°, 350-1100 nm $1,399 In Stock	05Q20BB.HR2-PK Mirror Pack, Ultra-Broadband Dielectric, 0.5 in., 0-50°, 350-1100 nm	UNIVERSAL	1.0	350-1100 nm	12.7 mm	3.1 mm	10	In Stock	$1,399	Newport
05Q620BB.HR2 Dielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20 $108 In Stock	05Q620BB.HR2 Dielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20	UNIVERSAL	1.0	350-1100 nm	12.7 mm	3.1 mm		In Stock	$108	Newport
05Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20, Qty 10 $973 In Stock	05Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20, Qty 10	UNIVERSAL	1.0	350-1100 nm	12.7 mm	3.1 mm	10	In Stock	$973	Newport
10Q20BB.HR2 Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 20-10 $192 In Stock	10Q20BB.HR2 Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 20-10	UNIVERSAL	1.0	350-1100 nm	25.4 mm	6.1 mm		In Stock	$192	Newport
10Q620BB.HR2 Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 40-20 $149 In Stock	10Q620BB.HR2 Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 40-20	UNIVERSAL	1.0	350-1100 nm	25.4 mm	6.1 mm		In Stock	$149	Newport
10Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, Qty 10 $1,342 In Stock	10Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, Qty 10	UNIVERSAL	1.0	350-1100 nm	25.4 mm	6.1 mm	10	In Stock	$1,342	Newport
20Q620BB.HR2 Dielectric Mirror, High Reflector, 50.8 mm, 0-50°, 350-1100 nm, 40-20 $440 In Stock	20Q620BB.HR2 Dielectric Mirror, High Reflector, 50.8 mm, 0-50°, 350-1100 nm, 40-20	UNIVERSAL	1.0	350-1100 nm	50.8 mm	9.4 mm		In Stock	$440	Newport

Show All

Notes:

For cost-saving 10 packs, click here

Specifications

Models	05Q20BB.HR2	05Q620BB.HR2	10Q20BB.HR2	10Q620BB.HR2	20Q620BB.HR2
Wavelength Range	350-1100 nm	350-1100 nm	350-1100 nm	350-1100 nm	350-1100 nm
Angle of Incidence	0 - 50°	0 - 50°	0 - 50°	0 - 50°	0 - 50°
Coating Type	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric
Reflectivity	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm
Damage Threshold	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses
Mirror Size	Ø12.7 mm	Ø12.7 mm	Ø25.4 mm	Ø25.4 mm	Ø50.8 mm
Material	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica
Surface Quality	20-10 scratch-dig	40-20 scratch-dig	20-10 scratch-dig	40-20 scratch-dig	40-20 scratch-dig
Surface Flatness	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm
Thickness	3.1 mm	3.1 mm	6.1 mm	6.1 mm	9.4 mm
Thickness Tolerance	±0.25 mm	±0.25 mm	±0.38 mm	±0.38 mm	±0.38 mm
Diameter	12.7 mm	12.7 mm	25.4 mm	25.4 mm	50.8 mm
Diameter Tolerance	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm
Clear Aperture	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter
Chamfers	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width
Chamfers Angle Tolerance	45° ±15°	45° ±15°	45° ±15°	45° ±15°	45° ±15°
Cleaning	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics

Specifications

Models	05Q20BB.HR2	05Q620BB.HR2	10Q20BB.HR2	10Q620BB.HR2	20Q620BB.HR2
Wavelength Range	350-1100 nm	350-1100 nm	350-1100 nm	350-1100 nm	350-1100 nm
Angle of Incidence	0 - 50°	0 - 50°	0 - 50°	0 - 50°	0 - 50°
Coating Type	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric	Metal-Dielectric
Reflectivity	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm	R_avg>97.5% @ 0-50° AOI @ 350-1100 nm
Damage Threshold	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses	1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses
Mirror Size	Ø12.7 mm	Ø12.7 mm	Ø25.4 mm	Ø25.4 mm	Ø50.8 mm
Material	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica	UV Grade Fused Silica
Surface Quality	20-10 scratch-dig	40-20 scratch-dig	20-10 scratch-dig	40-20 scratch-dig	40-20 scratch-dig
Surface Flatness	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm	λ/10 at 632.8 nm
Thickness	3.1 mm	3.1 mm	6.1 mm	6.1 mm	9.4 mm
Thickness Tolerance	±0.25 mm	±0.25 mm	±0.38 mm	±0.38 mm	±0.38 mm
Diameter	12.7 mm	12.7 mm	25.4 mm	25.4 mm	50.8 mm
Diameter Tolerance	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm	+0/-0.13 mm
Clear Aperture	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter	≥central 80% of diameter
Chamfers	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width	<0.5 mm face width
Chamfers Angle Tolerance	45° ±15°	45° ±15°	45° ±15°	45° ±15°	45° ±15°
Cleaning	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics	See How to Clean Optics

Features

UV Fused Silica Substrates

Fused Silica is synthetic amorphous silicon dioxide of extremely high purity. This non-crystalline, colorless silica glass combines a low content of inclusions with high refractive index homogeneity, a very low thermal expansion coefficient, and excellent transmittance in the wavelength regime from UV to NIR. As a result, these mirrors will perform better with temperature fluctuations and is ideal for high-energy laser applications due to its high energy damage threshold. For more information, please see our Optical Materials technical note.

Extremely Broad Wavelength Range With High Reflectivity

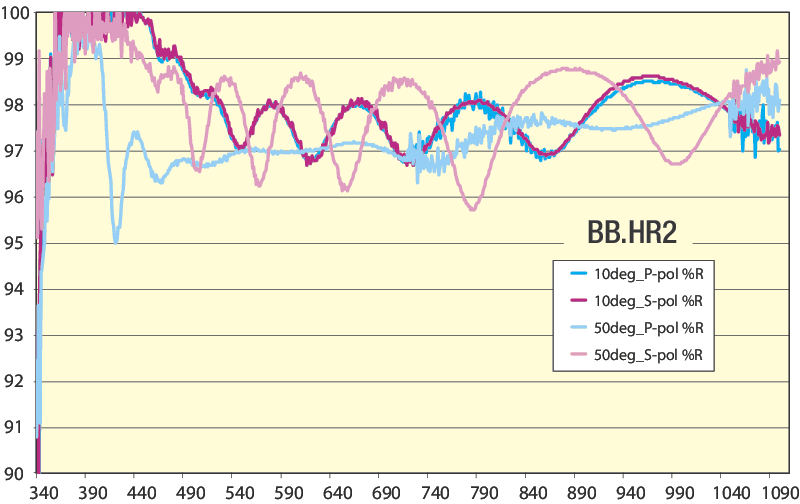

Broadbeam mirrors feature unprecedented specifications at an incredible value. These mirrors feature Newport’s proprietary metal-dielectric hybrid coating which provides exceptional reflectivity performance R_avg>97.5% over a very large wavelength range 350 - 1100 nm, 0 - 50 ͦ angle of incidence for both S and P polarizations. Because of the very broad wavelength range and high reflectivity efficiency, the mirror can be used with many different laser wavelengths and can easily replace all of the mirrors in your current system.

More Durable Metal Dielectric Coatings

In addition to the high reflectivity across the ultra-broadband wavelength range, the Broadbeam mirrors also feature a more durable coating compared to the traditional metallic mirrors. Typically metallic coatings suffer from more rapid degradation over time when compared to dielectrics. Broadband mirrors use a metal dielectric hybrid coating that is more resistant to humidity, thermal changes, abrasion and salt exposure, providing long-term value for your applications.

SAVE by purchasing a pack of 10!

A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.

Features

UV Fused Silica Substrates

Extremely Broad Wavelength Range With High Reflectivity

More Durable Metal Dielectric Coatings

SAVE by purchasing a pack of 10!

A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.
