Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 40-20

Standard Fused Silica Dielectric Mirrors

The 10Q620BB.HR2 BroadBeam High Reflector Laser Mirror is 25.4 mm in diameter, 6.1 mm thick, and is coated for 350-1100 nm, optimized for 0-50° angle of incidence. BroadBeam High Reflectors have an average reflectivity of 97.5% or better. They are manufactured using UV grade fused silica substrates and metal-dielectric hybrid coating. The BB.HR2 coating covers wavelengths from the UV to the visible to the IR. This product is also available in 10-piece saving pack .

UV Fused Silica Substrates

Fused Silica is synthetic amorphous silicon dioxide of extremely high purity. This non-crystalline, colorless silica glass combines a low content of inclusions with high refractive index homogeneity, a very low thermal expansion coefficient, and excellent transmittance in the wavelength regime from UV to NIR. As a result, these mirrors will perform better with temperature fluctuations and is ideal for high-energy laser applications due to its high energy damage threshold. For more information, please see our Optical Materials technical note.

Extremely Broad Wavelength Range With High Reflectivity

Broadbeam mirrors feature unprecedented specifications at an incredible value. These mirrors feature Newport’s proprietary metal-dielectric hybrid coating which provides exceptional reflectivity performance R_avg>97.5% over a very large wavelength range 350 - 1100 nm, 0 - 50 ͦ angle of incidence for both S and P polarizations. Because of the very broad wavelength range and high reflectivity efficiency, the mirror can be used with many different laser wavelengths and can easily replace all of the mirrors in your current system.

More Durable Metal Dielectric Coatings

In addition to the high reflectivity across the ultra-broadband wavelength range, the Broadbeam mirrors also feature a more durable coating compared to the traditional metallic mirrors. Typically metallic coatings suffer from more rapid degradation over time when compared to dielectrics. Broadband mirrors use a metal dielectric hybrid coating that is more resistant to humidity, thermal changes, abrasion and salt exposure, providing long-term value for your applications.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
350-1100 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.1 mm
Material
UV Grade Fused Silica
Coating Type
Metal-Dielectric
Coating Code
BB.HR2
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10Q620
Wedge
30 ± 15 arc min

Angle of Incidence
0 - 50°
Clear Aperture
≥central 80% of diameter
Back Surface
Commercial Polished
Reflectivity

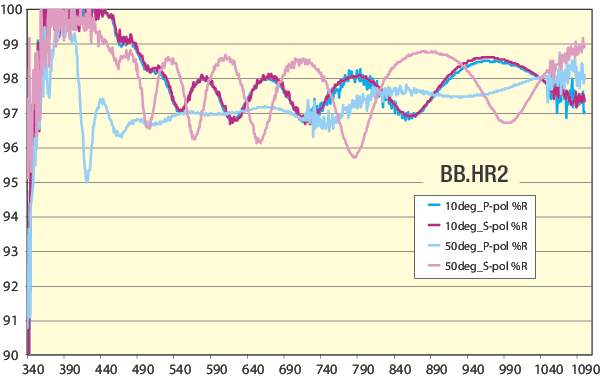

R_avg>97.5% @ 0-50° AOI @ 350-1100 nm
Damage Threshold
1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.38 mm
Chamfers
<0.5 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
350-1100 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.1 mm
Material
UV Grade Fused Silica
Coating Type
Metal-Dielectric
Coating Code
BB.HR2
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10Q620
Wedge
30 ± 15 arc min

Angle of Incidence
0 - 50°
Clear Aperture
≥central 80% of diameter
Back Surface
Commercial Polished
Reflectivity
R_avg>97.5% @ 0-50° AOI @ 350-1100 nm
Damage Threshold
1.3 J/cm² @ 355 nm, 2 J/cm² @ 532 nm, 2.3 J/cm² @ 1064 nm for 20ns pulses
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.38 mm
Chamfers
<0.5 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
