Our Optical PTFE diffuse material integrating sphere bodies are desigend for collimated input beams. PTFE based integrating spheres can be used in more demanding environments, including underwater and high or low temperature processes.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

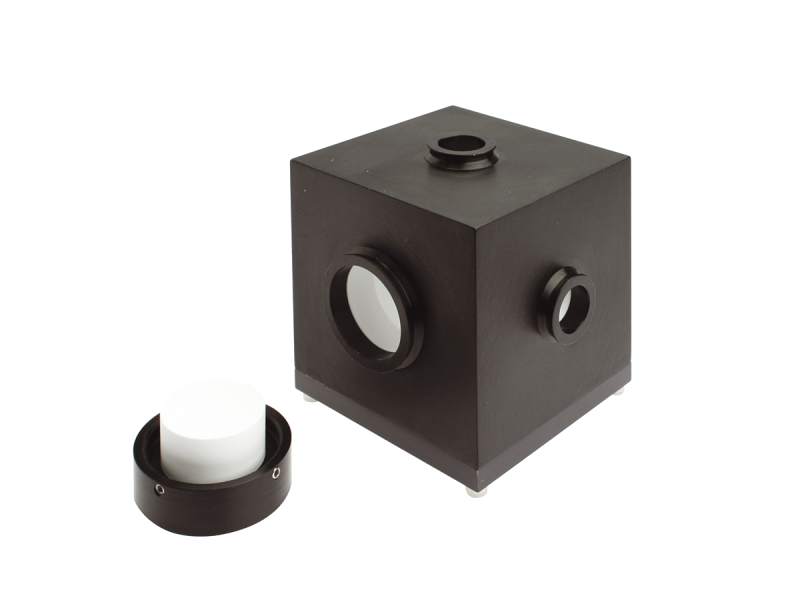

Integrating Sphere, 4-Port, 2 in. Diameter, PTFE, 1 in. Port Plug Included
$2,071
|
819C-IS-2 Integrating Sphere, 4-Port, 2 in. Diameter, PTFE, 1 in. Port Plug Included |
|
$2,071 |
|
||
|

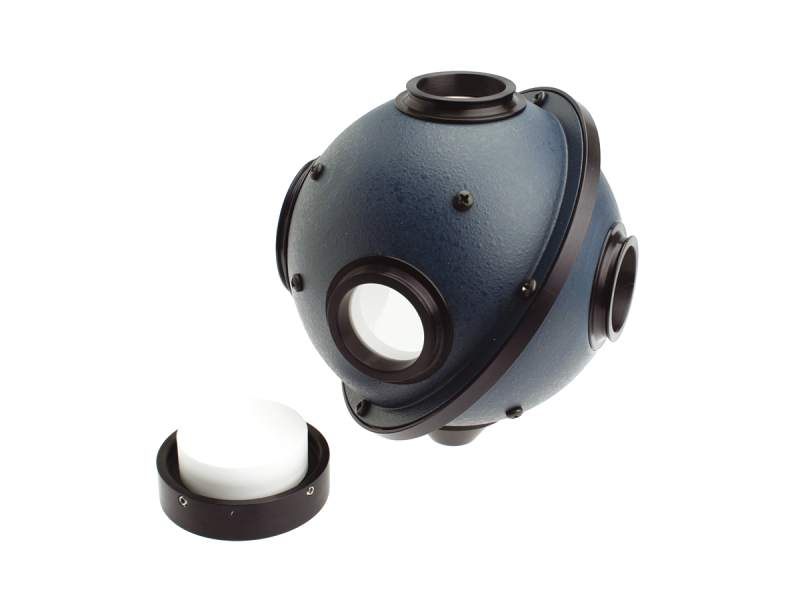

Integrating Sphere, 4-Port, 3.3 in. Diameter, PTFE, 1.5 in. Port Plug Included
$2,531
6 Weeks
|
819C-IS-3.3 Integrating Sphere, 4-Port, 3.3 in. Diameter, PTFE, 1.5 in. Port Plug Included |
6 Weeks
|
$2,531 |
|
||
|
Integrating Sphere, 4-Port, 5.3 in. Diameter, PTFE, 2.5 inch Port Plug Included
$3,314
In Stock
|
819C-IS-5.3 Integrating Sphere, 4-Port, 5.3 in. Diameter, PTFE, 2.5 inch Port Plug Included |
In Stock
|
$3,314 |
|
| Models |
|
|
|
|
|---|---|---|---|---|
| Spectral Range | 250 nm to 2.5 µm | 250 nm to 2.5 µm | 250 to 2500 nm | |
| Sphere Size | 2 in. | 3.3 in. | 5.3 in. | |
| North Pole Port Size | 0.5 in. | 1.0 in. | 1.0 in. | |
| 0 Degree Port Size |
1.0 in. (w/ |
1.5 in. (w/ |
2.5 in. (with 819M-PP-2.5) | |
| 90 Degree Port Size | 0.5 in. | 1.0 in. | 1.0 in. | |
| 180 Degree Port Size | 0.5 in. | 1.0 in. | 1.0 in. | |
| Thermal Limit | 350°C | |||
| Sphere Material | PTFE | PTFE | PTFE |

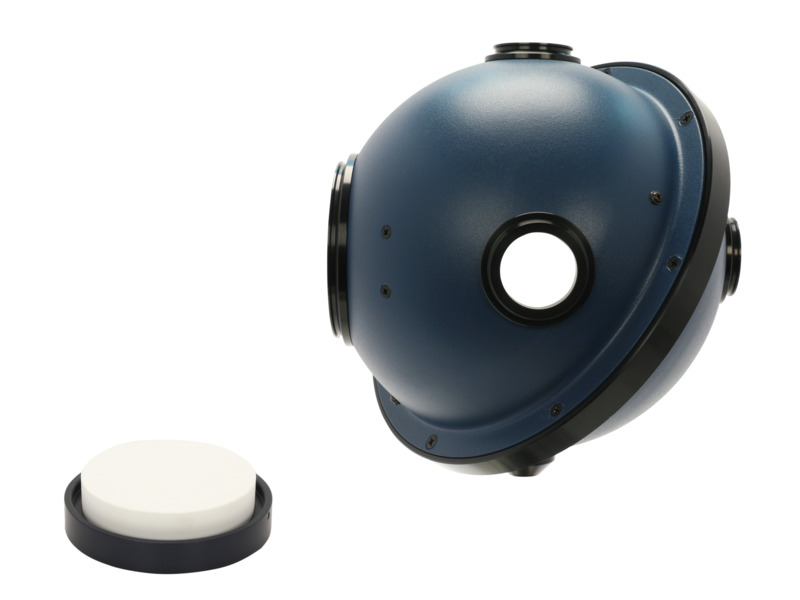

819C Series modular integrating sphere bodies feature four ports located at 0, 90 and 180 degrees, as well as at the north pole. The baffle is located between the 0- and the 90-degree ports. The 0-degree port is plugged with a port plug and the 180-degree port is used as the input. A fourth sphere port adds functionality to an integrating sphere but also diminishes the uniformity of the light distribution inside the sphere. We offer a wide variety of integrating sphere accessories that mount to the port frames, allowing the sphere to be customized for multiple applications.
The 819C series integrating sphere is ideal for applications that require use of the 180° port. A detector is typically mounted on the 90° port, while the source beam may enter the sphere through either the 0° or 180° port, depending on the application. Common applications include measuring total collimated laser beam power (including the collimated output of an optical fiber), measuring transmitted radiation from an irradiated sample and measuring reflected radiation from an irradiated sample. For more details about these applications, please see our Integrating Sphere Fundamentals and Applications tutorial.

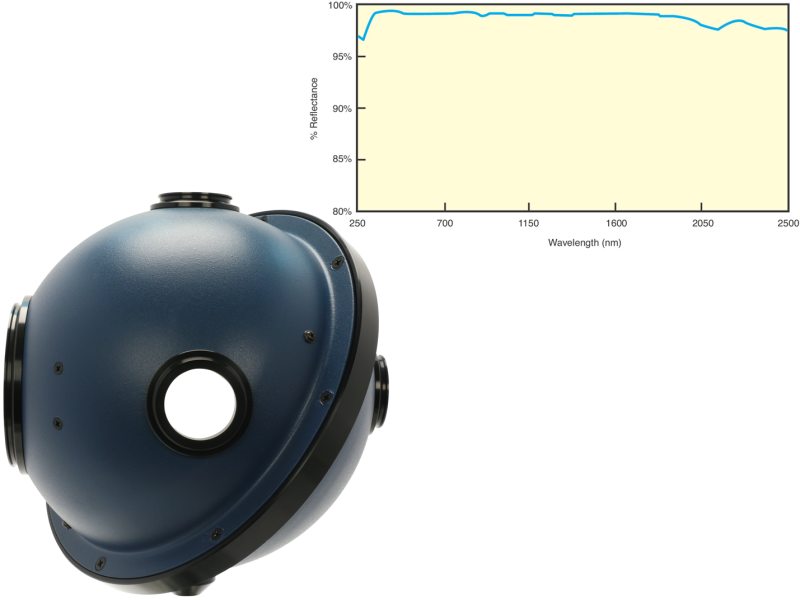

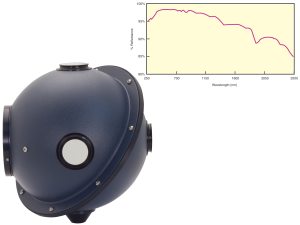

Hydrophobic, chemically inert and thermally stable to 350°C, Optical PTFE based integrating spheres can be used in more demanding environments, including underwater and high or low temperature processes. At the same time, reflectance exceeding 95% from 250–2500 nm, 98% from 310–2100 nm, and 99% from 400–1500 nm make them ideal for even the most demanding measurements from the ultraviolet to the near infrared.
Among the factors in selecting the size of an integrating sphere is the physical limitation of the measurement setup that will be used. Generally, as the sphere diameter grows, the “integration” property of the sphere improves, the port size can be larger and higher input power can be accommodated. However, with the increasing attenuation of the setup, the throughput will be decreased.

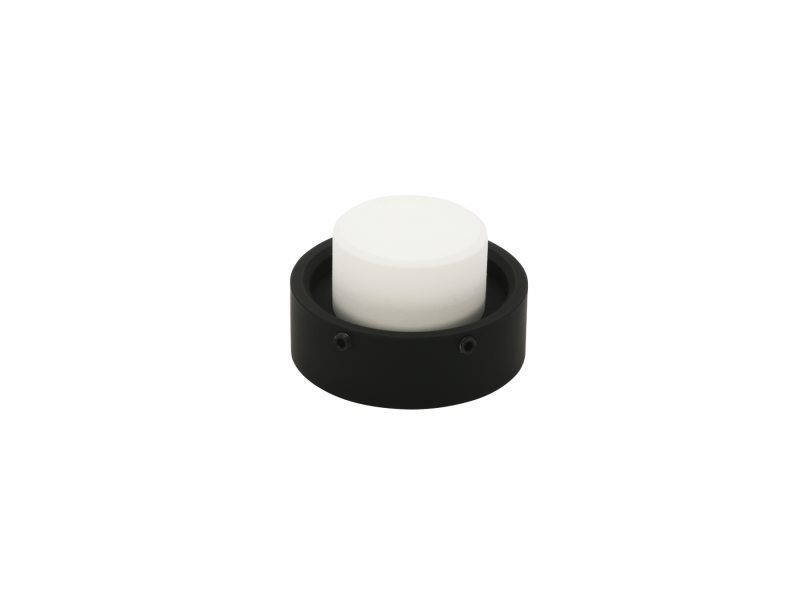

Newport offers accessories that are compatible with our integrating spheres to build a complete integrating sphere system. Various adapters are available to change port frame diameter, reduce an input port's clear aperture, measure fiber optic power, connect lens tubes and mount sensors. Port plugs to block an unused sphere port are also available.
