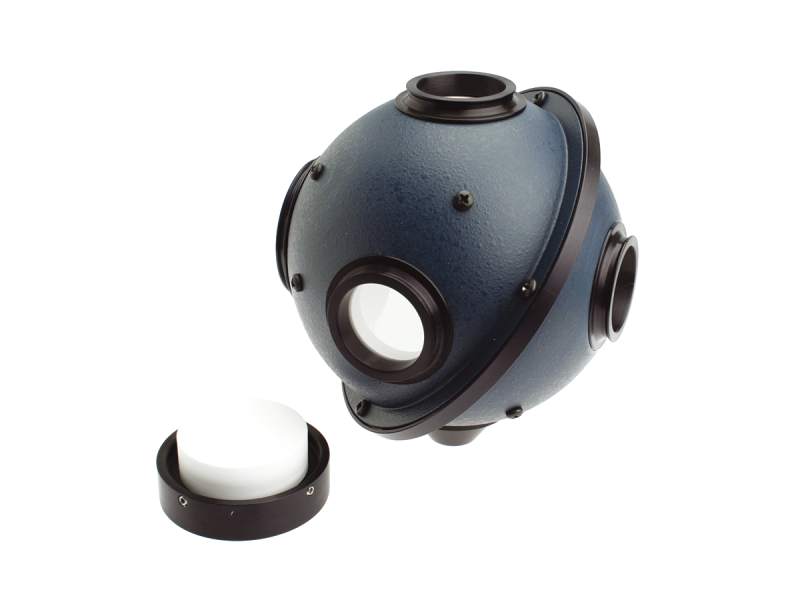

The 819C-IS-3.3 Integrating Sphere is a 3.3 inch, Optical PTFE coated, 4-port integrating sphere. Its damage threshold is 5.0 J/cm2. A 1.5 inch port plug 819M-PP-SL-1.5
is included so that the 0° port is always plugged to the diffuse beam from opposite port. The port at 90° is used for the user selectable detector. The port at 180° is for the incoming collimated beam. The port at the North Pole location (top) is for fiber optic taping to monitor wavelength. All spheres include a baffle between the 90° and 0° ports, which prevents direct illumination from the light source to the detector port. By adding Newport's 819 Series port adapters and accessories, numerous integrating sphere configurations can be obtained. It is replacing 819C-SL-3.3.
819M-PP-1.0Port Plug, 1.0 in. Port, Spectralon, 819C and 819D Spheres
UNIVERSAL
In Stock
$318.00
819M-SMA-1.0V2Fiber Adaptor, SMA, 1 inch, Flat Black, 819 Series
UNIVERSAL
In Stock
$248.00
819C-IS-3.3 - Drawings & CAD
Additional CAD file downloads are not available for this product.
819C-IS-3.3 - Drawings
Additional drawings are not available for this product.
819C-IS-3.3
Sign In
Request Resource
In order to provide better service and products, please provide the following brief information.
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Integrating Sphere, 4-Port, 3.3 in. Diameter, PTFE, 1.5 in. Port Plug Included
