IDL Industrial Application Linear Motor Linear Translation Stages

The long-travel IDL industrial-grade linear stages boast the highest load capacity and speed of all linear motor stages. With features like a hard top cover, flexible side bands and air purge, and with a wide variety of sizes and travel ranges to choose from, these stages are well suited for demanding production environments. In particular, the IDL stages' outstanding accuracy, pitch and yaw performance make them ideal for laser micro-machining applications.

Built for industrial environments with debris protection, high throughput and reliability
High-efficiency, non-contact, ironless linear motor for fast motion and speed stability
Extended travel and high load capacities to fit different applications
Quick and reliable delivery based on customers' production needs

See All Features

Show Filters:

Showing 10 of 21 total products

Compatibility:

Description	Compatibility	Travel Range	Centered Load Capacity	Width	Avail.

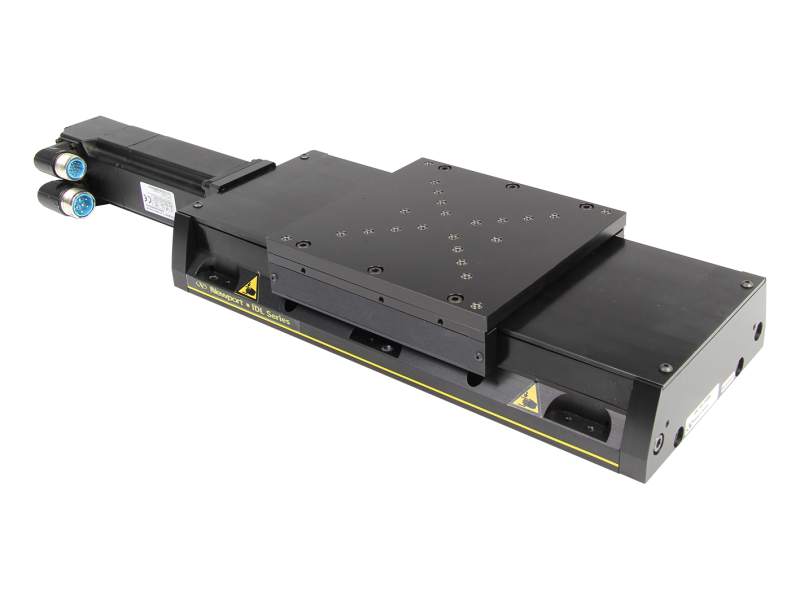

IDL165-100LMMotorized Linear Stage, Industrial, Linear Motor, 100 mm Travel, 165 mm	UNIVERSAL	100 mm	450 N	165 mm	Contact Us
IDL165-200LMMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 165 mm	UNIVERSAL	200 mm	450 N	165 mm	Contact Us
IDL165-300LMMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 165 mm	UNIVERSAL	300 mm	450 N	165 mm	Contact Us
IDL225-200LMMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 225 mm	UNIVERSAL	200 mm	1000 N	225 mm	Contact Us
IDL225-300LMMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 225 mm	UNIVERSAL	300 mm	1000 N	225 mm	Contact Us
IDL225-400LMMotorized Linear Stage, Industrial, Linear Motor, 400 mm Travel, 225 mm	UNIVERSAL	400 mm	1000 N	225 mm	Contact Us
IDL225-500LMMotorized Linear Stage, Industrial, Linear Motor, 500 mm Travel, 225 mm	UNIVERSAL	500 mm	1000 N	225 mm	Contact Us
IDL225-600LMMotorized Linear Stage, Industrial, Linear Motor, 600 mm Travel, 225 mm	UNIVERSAL	600 mm	1000 N	225 mm	Contact Us
IDL225-1000LMMotorized Linear Stage, Industrial, Linear Motor, 1000 mm Travel, 225 mm	UNIVERSAL	1000 mm	1000 N	225 mm	Contact Us
IDL225-1200LMMotorized Linear Stage, Industrial, Linear Motor, 1200 mm Travel, 225 mm	UNIVERSAL	1200 mm	1000 N	225 mm	Contact Us

Show All

Notes:

Brushless DC Motor version is also available.

Compatible Controllers

Compatible motion controllers for IDL225-LM to IDL560-LM linear motor driven stages are:

XPS-RLD Motion Controller ( or Axis): Requires an High Power Amplifier.
XPS-D Motion Controller (, , or Axis): Requires an High Power Amplifier.

Compatible motion controllers for IDL165-LM linear motor driven stages are:

XPS-RLD Motion Controller ( or Axis): Requires an driver module.
XPS-D Motion Controller (, , or Axis): Requires an driver module.

Specifications

Motorized Axes
X
Maximum Speed
2000 mm/s
Minimum Incremental Motion
0.050 µm
Bi-directional Repeatability, Typical
±0.10 µm
Base Material
Aluminum
Bearings
Recirculating caged ball bearings
Drive Mechanism
Ironless linear motor
Feedback
Linear steel scale

Encoder Resolution
1 Vpp 20 µm pitch
Limit Switches
Optical, Positive and Negative End-Of-Run -5 V
Origin
Optical, centered
Connector Type
DB15 Male (2) and DB9W4
Thread Type
M6
MTBF
20,000 h (25% load, 30% duty cycle)
RoHS
Compliant

Features

Industrial-Level Build and Performance

With a focus on high throughput, heavy load capacity, and extreme durability, the IDL stages have been designed for the most rigorous demands of precision industrial laser microprocessing. Industrial grade hard covers, wear-resistant sidebands, air purge, and directed debris path make the IDL suitable for industrial environments.

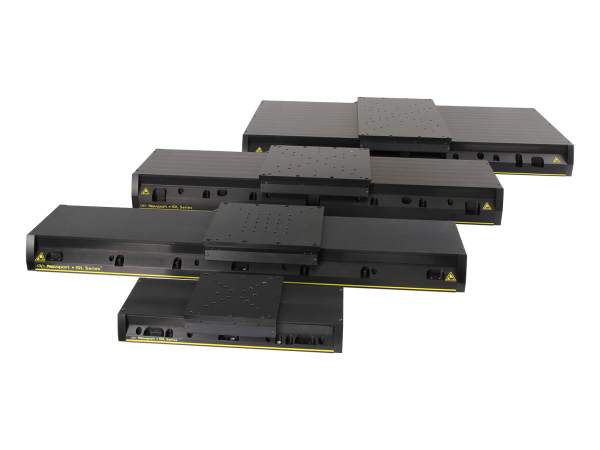

Platform Sizes, Travel Ranges & Load Capacities for Popular Industrial Applications

The various sizes of width, travel range and load capacities of the IDL family are available to fit numerous applications. Given the variety, these stages are directly stackable with each other, minimizing design and assembly time.

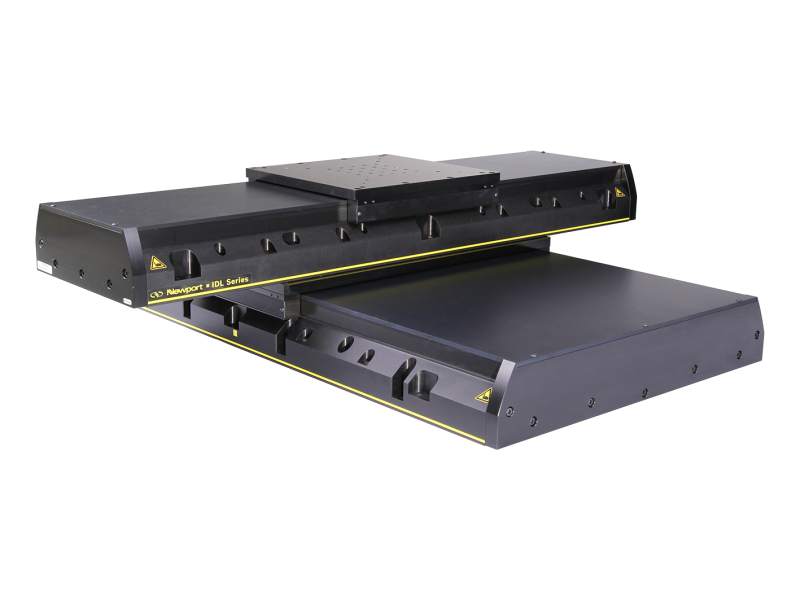

Easy Direct Mounting of XY Stack Configurations

IDL stages feature both imperial and metric mounting hole patterns allowing for flexible mounting.

Reliable Stage Delivery

Just like any other Newport product, the IDL series can be ordered both from stock or under a blanket schedule. This ensures that OEMs meet their commitments.

Individual Stage Metrology Report is Included

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
