Specialty Tap, 8-100 Thread

The ST-E100 Specialty Tap is made to cut right handed, class 3, 8-100 threads for the SW-10E series of 8-100 Fine Adjustment Screws. This tap has 2 straight flutes and plug chamfer. It has a square shank measuring 0.191 in. (4.85 mm) across and has a full length of 2.5 in. (63.6 mm). The ST-CHUCK can be used as a tap handle and guide.

Specifications

Technical Specs

Type
Tap
Adjustment Screw Thread
8-100
Material
Tool Steel
Drill Size
0.1549 in.

Tap Size
0.1640 in.
Pack Quantity
1

Type
Tap
Adjustment Screw Thread
8-100
Material
Tool Steel
Drill Size
0.1549 in.

Tap Size
0.1640 in.
Pack Quantity
1

Resources & Downloads

2D Product Drawings

ST-X100 Drawing(86.5 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

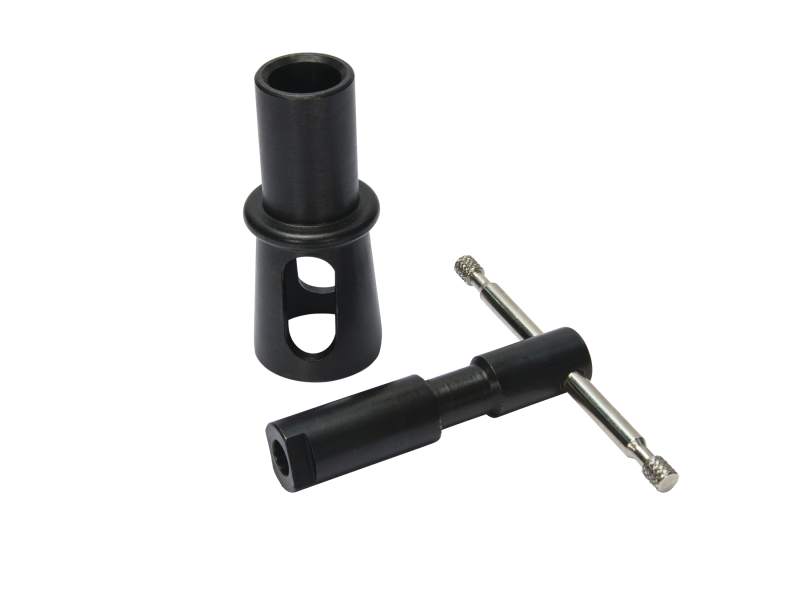

		ST-CHUCKTap Guide, For Use with ST-Q100 or ST-E100 Taps	UNIVERSAL		3 Weeks	$86

Frequently Purchased Together

Description	Compatibility	Avail.	Price
SW-10E1-3Adjustment Screw Pack, 8-100 Thread, 15.2 mm Length, Qty 3	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$19.10
JN-1E-3Brass Lock Nut, 8-100 Thread, SW-10E Screws, 3-Pack	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
ST-CHUCKTap Guide, For Use with ST-Q100 or ST-E100 Taps	UNIVERSAL	3 Weeks	$86
