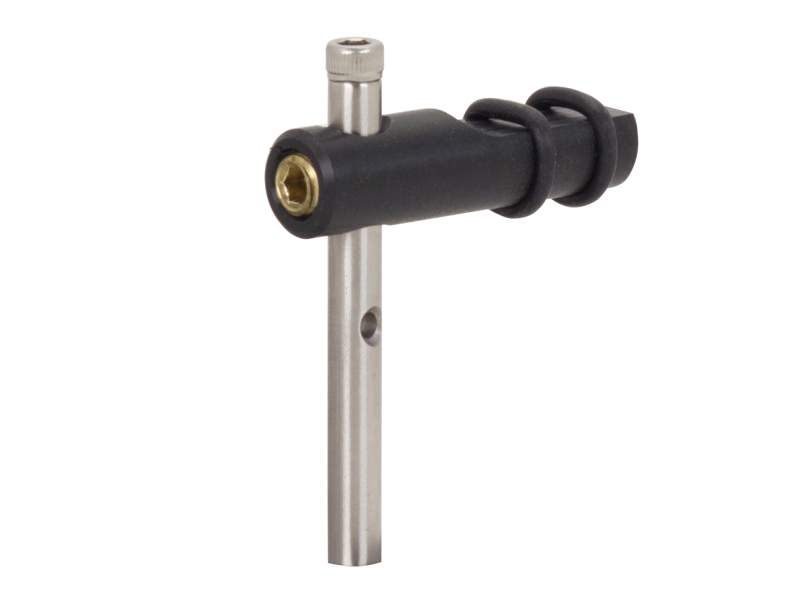

Prism Clamp, Platform Mounts

Prism Clamp, Platform Mounts

Model: PT-1C

$20

In Stock

Compare

Add to List

Product Series Overview

Prism and Optic Clamping Arms

The PT-1C is used to clamp prisms and cube beam splitters to platform mounts.

Specifications

Technical Specs

Material

Anodized Aluminum
Thread Type

8/32 & M4

Material

Anodized Aluminum
Thread Type

8/32 & M4

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PT-1C-S (164.8 kB, PDF)

Other

PT-1C RoHS Certificate (0, PDF)
