Optical Pedestal Pack, 4.0 in. Height, 1.0 in. Diameter, 8-32, Qty 10

1.0 in. Optical Pedestals, Graduated Diameter

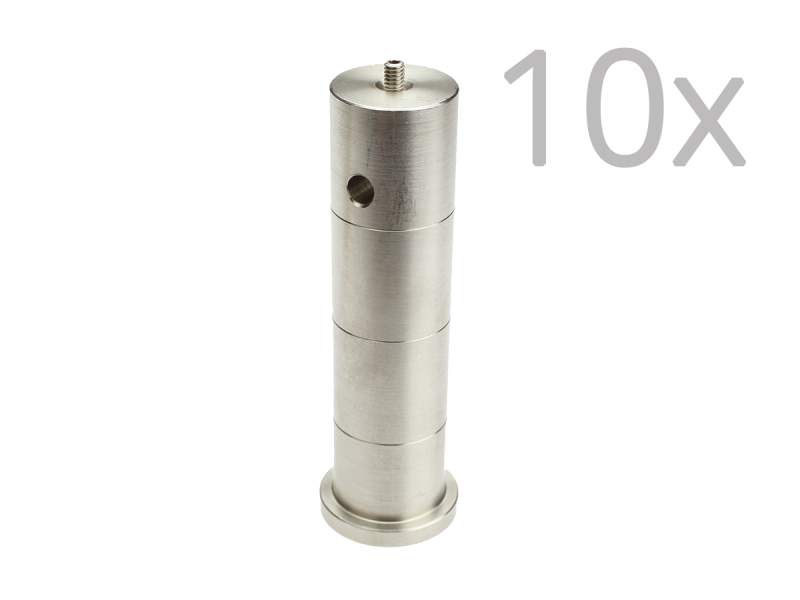

This is a 10-pack of the Optical Pedestal. The PS-4 Precision Ground Stainless Steel Optical Pedestal maintains long-term optical system alignment. This 1.0 in. diameter post has a 4.0 in. height. Each post is marked with an index groove every 1.0 in. for a quick height reference. Cross-drilled holes allow 3/16 in. hex wrenches to aid in tightening and loosening assembled posts. An 8-32 threaded hole on each end allows optical pedestals and pedestal extenders to be attached together end-to-end using a setscrew. In-between heights can be achieved by combining a pedestal post with a 1/2 in. high post and/or spacers, available in 0.125 and 0.25 in. heights. For direct mounting to a threaded hole on an optical table, use a 1/4-20 to 8-32 thread adaptor. Optical pedestals enable ultra-stable mounting of optical mounts at low beam heights. Slotted clamping forks secure optical pedestals anywhere on an optical table.

Specifications

Technical Specs

Type
Optical Pedestal Pack
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Pack Quantity
10
Diameter
25.4 mm

Type
Optical Pedestal Pack
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Pack Quantity
10
Diameter
25.4 mm

Resources & Downloads

2D Product Drawings

PS Posts-S(175.7 kB, PDF)

Other

PS-4-PK RoHS Certificate(277.1 kB, PDF)
PS-4-PK_RoHS2021.pdf(679 kB, PDF)
