OC1-CM-B Cube Mount Base

Cube Mount Base, Optics Cage Plus

Model: OC1-CM-B

$30

In Stock

Compare

Add to List

Product Series Overview

Optics Cage Plus Mounting Cube

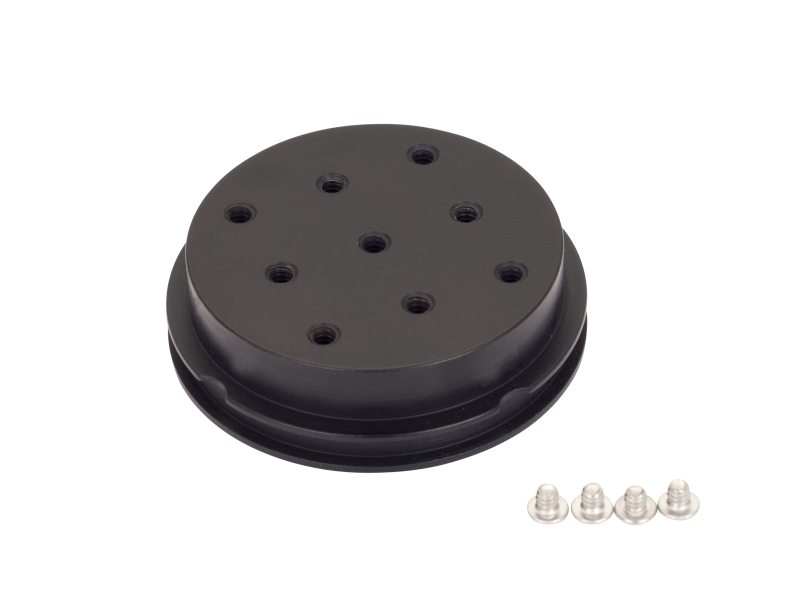

OC1-CM-B Cube Mount Base is designed to support OC1-CM-P prism mount, OC1-CM-F beamsplitter mount, or OC1-CM-D dichroic filter mount within the OC1-CM mounting cube. It features an 8-32 threaded hole at the bottom for post mounting.

Specifications

Technical Specs

Type

Cube Base
Material

Aluminum

Type

Cube Base
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

OC1-CM-B-334 (121.2 kB, PDF)

Other

OC1-CM-B RoHS Certificate (277.5 kB, PDF)
