Optics Cage Plus Kit, 1 inch Diameter Optics

Model: OC1-A-PK

$1,608

In Stock

Compare

Add to List

Product Series Overview

OpticsCagePlus Primer Kit

The OC1-A-PK Primer Kit offers a cost-saving sample of popular OpticsCage+ parts. A free 9-drawer storage cabinet is included. Links to individual products contained in this kit can be found on the Related Products tab.

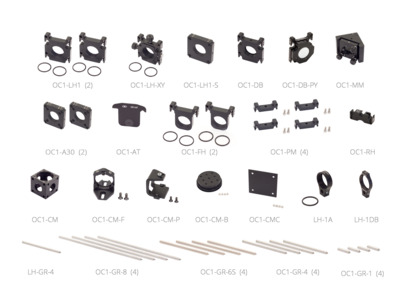

Parts List (Qty):
• (1) LH-1A A-Line Fixed Lens Mount
• (1) LH-1DB A-Line Fixed Double-Bore Mount
• (1) LH-GR-4 A-Line Guide Rod, D-Keyed, Ø6 mm, 4ʺ long
• (1) OC1-AT Alignment Target
• (2) OC1-A30 OpticsCage+ to 30 mm Adaptor
• (1) OC1-CM Mounting Cube
• (1) OC1-CM-B Cube Beamsplitter Mount Base
• (1) OC1-CMC Cube Mount Cover Plate
• (1) OC1-CM-F 45° Beam Splitter Mount for Cube
• (1) OC1-CM-P Prism Mount
• (1) OC1-DB Double-bored Mount
• (1) OC1-DB-PY Adjustable Mirror Mount
• (2) OC1-LH1 Insertable Lens Mount
• (1) OC1-LH1-S Standard Lens Mount
• (1) OC1-LH1-XY Lens Mount, XY Fine
• (1) OC1-MM Adjustable Mirror Mount, 90° Folding
• (1) OC1-RH A-Line to OpticsCage+ Adaptor
• (2) OC1-FH Insertable Filter Holder
• (4) OC1-PM OpticsCage+ Post Mount
• (4) OC1-GR-1 Ø6 mm, 1ʺ long Cage Rod
• (4) OC1-GR-4 Ø6 mm, 4ʺ long Cage Rod
• (4) OC1-GR-6S Ø6 mm, 6ʺ long Laser Marked Cage Rod
• (4) OC1-GR-8 Ø6 mm, 8ʺ long Cage Rod

Specifications

Technical Specs

Material

Aluminum

Material

Aluminum

Resources & Downloads

Other

OC1-A-PK RoHS Certificate (279.1 kB, PDF)

Related Products

Spare Parts

Description	Compatibility	Avail.	Price
LH-1DB Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$24
OC1-CM Mounting Cube, Optics Cage Plus	UNIVERSAL	In Stock	$90
OC1-GR-8 Guide Rod, 6 mm, 4-40 Thd, 8 in. Length, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$17.40
OC1-GR-4 Guide Rod, 6 mm, 4-40 Thd, 4 in. Length, 1 in. Optics Cage Plus	UNIVERSAL	2 Weeks	$10.70
OC1-A30 Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$45
OC1-LH1 Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL	In Stock	$24
OC1-LH1-S Lens Mount, Standard, 1 in. Diameter, Optics Cage Plus	UNIVERSAL	In Stock	$38
OC1-LH1-XY Adjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$243
OC1-MM Mirror Mount, 25.4 mm, Adjustable, 90° Folding, Optics Cage Plus	UNIVERSAL	In Stock	$192
OC1-RH Adaptor, A-Line to Optics Cage+	UNIVERSAL	In Stock	$35
OC1-PM Optical Post Mount, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$20
OC1-CMC Mounting Cube Cover Plate, Optics Cage Plus	UNIVERSAL	Show	$21
OC1-CM-P Prism Mount, 1.0 in. Cube, Requires OC1-CM-B	UNIVERSAL	In Stock	$58
LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$20
OC1-GR-6S Guide Rods, 6 mm, 4-40 Thd, 6 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$27
OC1-CM-F Beamsplitter Mount, Ø25.4 mm, Requires OC1-CM-B	UNIVERSAL	In Stock	$68
OC1-GR-1 Guide Rod, 6 mm, 4-40 Thd, 1 in. Length, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$7.60
OC1-CM-B Cube Mount Base, Optics Cage Plus	UNIVERSAL	In Stock	$30
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	UNIVERSAL	3 Weeks	$17.40
OC1-DB Double-bored Mirror Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL	In Stock	$27
OC1-DB-PY Kinematic Mirror Mount, Insertable, 25.4 mm, Optics Cage Plus	UNIVERSAL	1 Week	$145
OC1-AT Alignment Target, Drop-in, Optics Cage Plus	UNIVERSAL	In Stock	$18.70
OC1-FH Filter Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL	In Stock	$24
