Rimmed Safety Glasses, Nd:YAG, 532 nm Alignment Laser Wavelengths

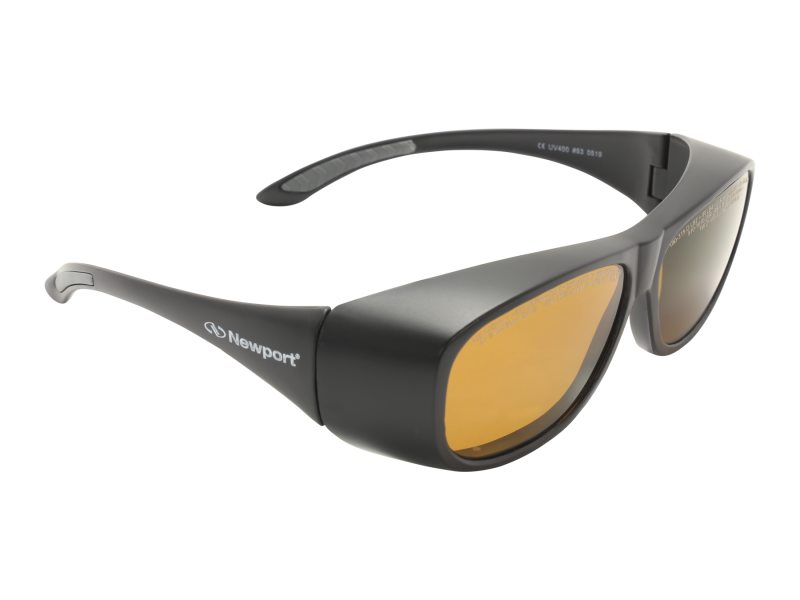

Universal Rimmed Frame Laser Safety Glasses

The N-YGN-53 Safety Glasses are for Nd:YAG, 532nm Alignment laser wavelengths. It has a Universal Rimmed Frame with amber color polycarbonate lenses. 33% VLT (visible light transmission). The Rimmed frame has unmatched protection, comfort and style, offering sleek styling that fits comfortably over prescription frames or can be worn as a stand-alone spectacle. Meets ANSI Z136.1 and EN207.

Similar to Honeywell model G3986.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model of laser safety glasses is available by clicking on the model number in the order or specification table.

Transmission curve for model N-FG1-53 shown.

Rimmed Frame Design for Durability

These glasses feature a rimmed frame design. This design ensures high durability and ample coverage.

Fits Over a Majority of Prescription Eyewear

The design of these goggles allow them to comfortably fit over most prescription eyewear. The last number in the model numbers indicate the frame style. The dimensions of the Style #53 is 146 mm x 145 mm x 50 mm (frame width x temple length x frame height), and #55 is 145 mm x 142 mm x 45 mm.

Specifications

Technical Specs

Frame Style
Universal Rimmed
Visible Light Transmission
33%
Filter Color
Amber
Optical Density
OD 5+ @190-400 nm
OD3+ @ 532 nm
OD4+ @ 808-850 nm
OD5+ @ >850-1075 nm
OD6+ @ 910-980 nm
OD7+ @ >980-1070 nm
Laser Type
Nd:YAG
532nm Alignment
Lens Material
Polycarbonate

CE
Yes
EN207
180–315 nm (D LB7 + IR LB4)
>315–390 nm (DIRM LB5)
808–850 nm (DIR LB4)
>850–1075 nm (DIR LB5)
910–1070 nm (DIR LB6 + M LB6Y)
1W 2*10E-4J 532 nm (RB3)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)
