Rimmed Safety Glasses, Diode Telecom Wavelengths

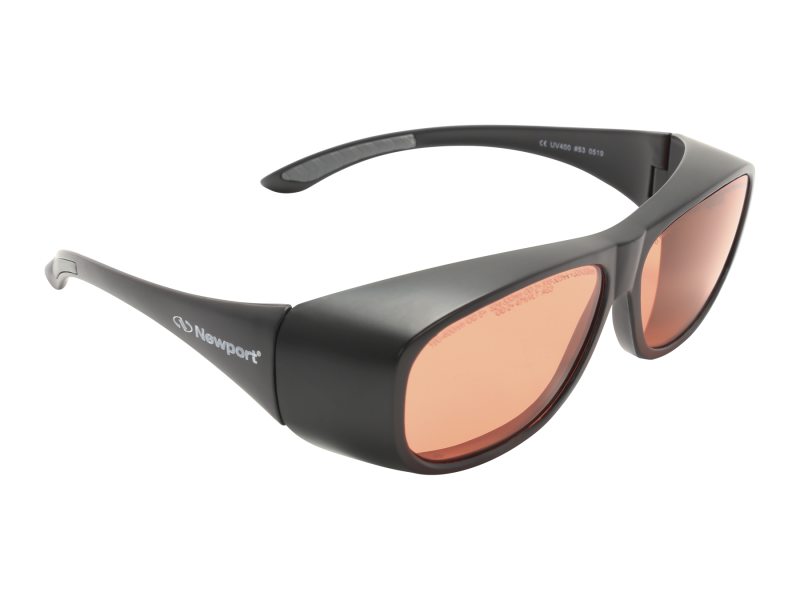

Universal Rimmed Frame Laser Safety Glasses

The N-AG3-53 Safety Glasses are for 532 nm Alignment, Excimer, and CO2 laser wavelengths. It has a Universal Rimmed Frame with topaz color polycarbonate lenses. 47% VLT (visible light transmission). The Rimmed frame has unmatched protection, comfort and style, offering sleek styling that fits comfortably over prescription frames or can be worn as a stand-alone spectacle. This model is CE certified. Meets ANSI Z136.1 and EN207.

Similar to Honeywell model LOTG-532-ALGN.

Glasses Designed to Offer Complete Protection

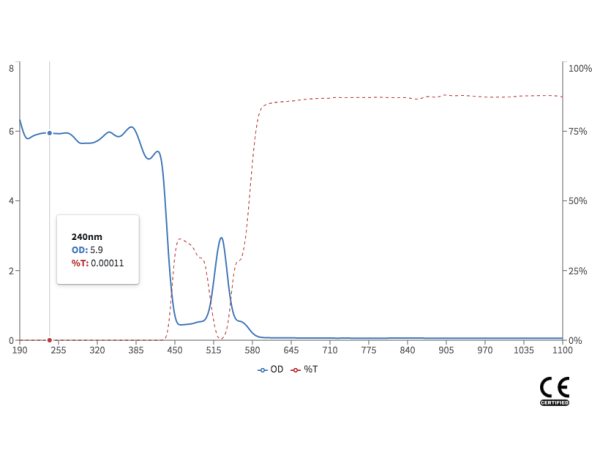

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model of laser safety glasses is available by clicking on the model number in the order or specification table.

Transmission curve for model N-FG1-53 shown.

Rimmed Frame Design for Durability

These glasses feature a rimmed frame design. This design ensures high durability and ample coverage.

Fits Over a Majority of Prescription Eyewear

The design of these goggles allow them to comfortably fit over most prescription eyewear. The last number in the model numbers indicate the frame style. The dimensions of the Style #53 is 146 mm x 145 mm x 50 mm (frame width x temple length x frame height), and #55 is 145 mm x 142 mm x 45 mm.

Specifications

Technical Specs

Frame Style
Universal Rimmed
Visible Light Transmission
47%
Filter Color
Topaz
Optical Density
OD 5+ @ 190-400 nm
OD2+ @ 518-523 +533-536 nm
OD3+ @ 524-532 nm
Laser Type
532 nm Alignment
Excimer
CO₂
Lens Material
Polycarbonate

CE
Yes
EN207
0.1W 2*10E-5J 518–523 + 533-536 nm (RB2)
1W 2*10E-4J 524–532 nm (RB3)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)

Frame Style
Universal Rimmed
Visible Light Transmission
47%
Filter Color
Topaz
Optical Density
OD 5+ @ 190-400 nm
OD2+ @ 518-523 +533-536 nm
OD3+ @ 524-532 nm
Laser Type
532 nm Alignment
Excimer
CO₂
Lens Material
Polycarbonate

CE
Yes
EN207
0.1W 2*10E-5J 518–523 + 533-536 nm (RB2)
1W 2*10E-4J 524–532 nm (RB3)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)
