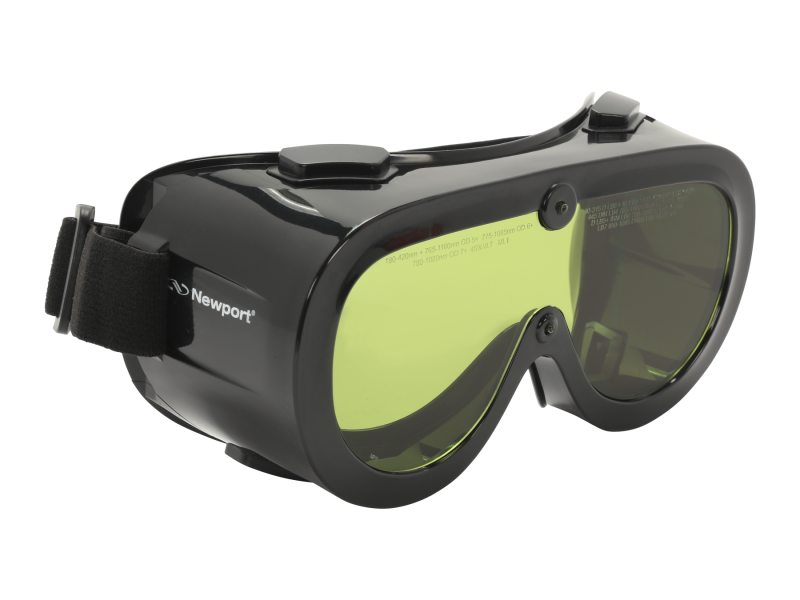

Lasersmith Safety Goggles, 800 nm Diode and YAG Laser Wavelengths

The N-ML1-60 Safety Goggles are for 800 nm diode and YAG laser wavelengths. It has the Lasersmith Goggle frame with green color polycarbonate lenses. 45% VLT (visible light transmission). Lasersmith Goggles fit easily over prescription eyewear. It provides maximum comfort and airtight seal, with minimized fogging via ventilation. This model is CE certified. Meets ANSI Z136.1 and EN207.

Similar to Honeywell models 31-70162, G70108.

Goggle Design Offers Complete Protection

The advanced filter technology implemented in these goggles ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The goggle design allows for complete eye coverage for complete protection. The transmission curve of each goggle is available by clicking on the model number in the order or specification table.

Seal Provides Maximum Comfort and Airtight Seal

The silicone seal on the goggles ensures maximum comfort and an airtight seal.

Fits Over Prescription Eyewear

The design of these goggles allow them to comfortably fit over prescription eyewear.

Anti-Fog Design

These goggles come with an anti-scratch coating and an indirect ventilation system to minimize fogging.

Specifications

Technical Specs

Frame Style
Lasersmith Goggle
Visible Light Transmission
45%
Filter Color
Green
Optical Density
OD5+ @ 190-420 nm
OD5+ @ 765-1100 nm
OD6+ @ 775-1085 nm
OD7+ @ 790-1080 nm
Laser Type
800 nm diode
YAG

Lens Material
Polycarbonate
CE
Yes
EN207
190–315 nm (D LB8 + IR LB4)
>315–420 nm (DIR LB5)
>420–445 nm (DIR LB4)
765–1100 nm (DIRM LB5)
775–1085 nm (D LB5 + IRM LB6)
790–1080 nm (D LB6 + IRM LB7)
950–1085 nm (DIRM LB6)

Frame Style
Lasersmith Goggle
Visible Light Transmission
45%
Filter Color
Green
Optical Density
OD5+ @ 190-420 nm
OD5+ @ 765-1100 nm
OD6+ @ 775-1085 nm
OD7+ @ 790-1080 nm
Laser Type
800 nm diode
YAG

Lens Material
Polycarbonate
CE
Yes
EN207
190–315 nm (D LB8 + IR LB4)
>315–420 nm (DIR LB5)
>420–445 nm (DIR LB4)
765–1100 nm (DIRM LB5)
775–1085 nm (D LB5 + IRM LB6)
790–1080 nm (D LB6 + IRM LB7)
950–1085 nm (DIRM LB6)
