MK-1 Opto-Mechanical Set

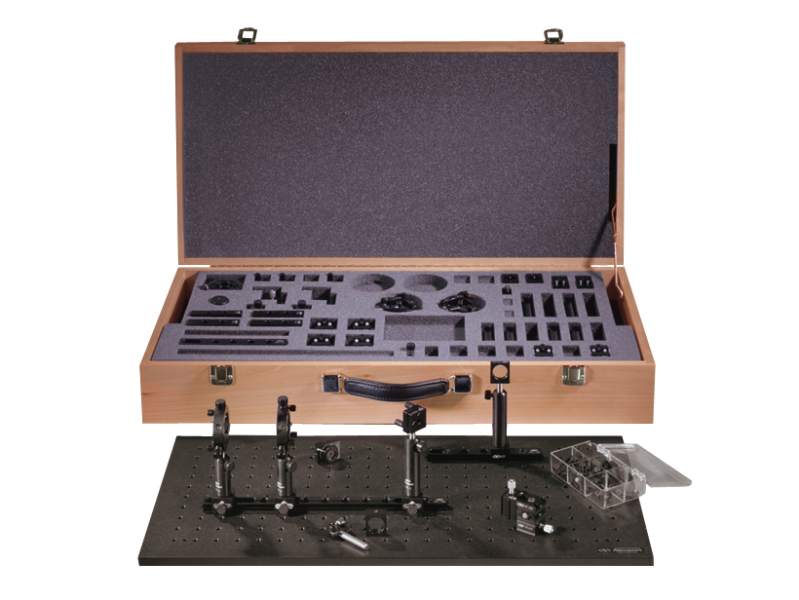

The MK-1 Components Set is a carefully thought out assortment of our popular miniature components that allows you to economically construct a wide variety of precision two and three-dimensional compact opto-mechanical setups. The MK-1 Set provides great utility and convenient ease of ordering with compatibility to Newport’s entire line of products. With the addition of a laser and simple optics, you can construct sophisticated devices, spatial filters, microscopes and telescopes. The components’ ease of use, stability, and quick assembly, yield many benefits for a variety of users, including Researchers and Engineers. Educators will find the set useful for demonstrating fundamental optical principles to their students. A hardwood case is included.

Compare

Description

Drawings, CAD & Specs

Avail.

Price

BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large

In Stock

$43

CCL-1 Cable Clamps, Qty 5 Short and 5 Long

In Stock

$49

AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10

In Stock

$20

SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805

In Stock

BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers

In Stock

$39

Compare

Description

Drawings, CAD & Specs

Avail.

Price

OEK-STD Educational Kit, Projects in Optics, Includes Laser, Imperial

In Stock

$10,093

Compare

Description

Drawings, CAD & Specs

Avail.

Price

SCG-MT-KT Supercontinuum Generation Kit, SCG-800 Fiber Module, ULTRAlign Positioners

3 Weeks

$18,948

Opto-Mechanical Set, Miniature Components with Hardwood Case

Model: MK-1

Product Series Overview

Specifications

Technical Specs

Resources & Downloads

Other

Related Products

Accessories

Similar

Compatible

Qty	Part Number	Description
1	13663-01	Hardwood Case
1	13665-01	Kit of Screws
4	AC-1A Model: AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms $58 In Stock See Full Product Details Product Series Overview XY Adjustable Variable Size Lens Mounts	Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms
2	CN-E8T-6 Model: CN-E8T-6 Counterbore Nut Thread Adaptor, 8-32 Thread, 1/4-20 Counterbore, Qty 6 $56 /Pack In Stock See Full Product Details Product Series Overview Thread Adaptors	Counterbore Nut Thread Adaptor, 8-32 Thread, 1/4-20 Counterbore, Qty 6
1	ID-0.5 Model: ID-0.5 Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves $56 In Stock See Full Product Details Product Series Overview Post Mounted Iris Diaphragms	Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves
1	MCA-1 Model: MCA-1 Right-Angle Post Clamp, 0.313 in. Diameter Optical Posts, 8-32 Thread $42 In Stock See Full Product Details Product Series Overview Miniature Post Mounting Accessories	Right-Angle Post Clamp, 0.313 in. Diameter Optical Posts, 8-32 Thread
4	MCD Model: MCD Optical Rail Carrier, Dovetail, Miniature Rail, MRL Series $40 In Stock See Full Product Details Product Series Overview 19 mm Miniature Optical Rails & Carriers	Optical Rail Carrier, Dovetail, Miniature Rail, MRL Series
6	MCF Model: MCF Optical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series $40 In Stock See Full Product Details Product Series Overview 19 mm Miniature Optical Rails & Carriers	Optical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series
1	MFC-1 Model: MFC-1 Optical Filter Clamp, 0.313 in. Diameter Optical Posts, 8/32 Thread $30 In Stock See Full Product Details Product Series Overview Miniature Post Mounting Accessories	Optical Filter Clamp, 0.313 in. Diameter Optical Posts, 8/32 Thread
4	MH-2P Model: MH-2P Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter $49 In Stock See Full Product Details Product Series Overview 0.75 Inch Fixed Lens Mount	Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter
2	MH-2PM Model: MH-2PM Microscope Objective Holder, RMS-Threaded, 0.625 in. Axis Height $49 In Stock See Full Product Details Product Series Overview Microscope Objective Lens Mounts And Adapters	Microscope Objective Holder, RMS-Threaded, 0.625 in. Axis Height
1	MRL-12M Model: MRL-12M Optical Rail, Miniature, 12 in. Length, 8-32 Thread and 1/4-20 CLR $107 In Stock See Full Product Details Product Series Overview 19 mm Miniature Optical Rails & Carriers	Optical Rail, Miniature, 12 in. Length, 8-32 Thread and 1/4-20 CLR
4	MRL-3 Model: MRL-3 Optical Rail, Miniature, 3 in. Length, 8-32 Thread and 1/4-20 CLR $40 In Stock See Full Product Details Product Series Overview 19 mm Miniature Optical Rails & Carriers	Optical Rail, Miniature, 3 in. Length, 8-32 Thread and 1/4-20 CLR
2	MRL-6M Model: MRL-6M Optical Rail, Miniature, 6 in. Length, 8-32 Thread and 1/4-20 CLR $62 In Stock See Full Product Details Product Series Overview 19 mm Miniature Optical Rails & Carriers	Optical Rail, Miniature, 6 in. Length, 8-32 Thread and 1/4-20 CLR
2	MSPH-1 Model: MSPH-1 Optical Post Holder, 1.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base $14.40 In Stock See Full Product Details Product Series Overview Miniature Slotted Base Optical Post Holders	Optical Post Holder, 1.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
6	MSPH-2 Model: MSPH-2 Optical Post Holder, 2.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base $18.70 In Stock See Full Product Details Product Series Overview Miniature Slotted Base Optical Post Holders	Optical Post Holder, 2.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
4	MSPH-3 Model: MSPH-3 Optical Post Holder, 3.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base $20 In Stock See Full Product Details Product Series Overview Miniature Slotted Base Optical Post Holders	Optical Post Holder, 2.35 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
2	MT-XYZ Model: MT-XYZ XYZ Linear Stage, Compact, Dovetail, 0.375 in. Travel, 3 lb., 8-32 $406 In Stock See Full Product Details Product Series Overview Compact Dovetail Linear Stages	XYZ Linear Stage, Compact, Dovetail, 0.375 in. Travel, 3 lb., 8-32
4	P100-P Model: P100-P Platform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32 $76 In Stock See Full Product Details Product Series Overview Miniature Platform Mirror Mounts	Platform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32
1	RSA-1TI Model: RSA-1TI Solid Insert, RSP-1T Rotation Stage $17.40 In Stock See Full Product Details Product Series Overview High Performance Optic Rotation Mounts	Solid Insert, RSP-1T Rotation Stage
1	RSP-1T Model: RSP-1T Optic Rotation Mount, 25.4 mm, Fine Adjust Knob, 8-32 and M4 $291 In Stock See Full Product Details Product Series Overview High Performance Optic Rotation Mounts	Optic Rotation Mount, 25.4 mm, Fine Adjust Knob, 8-32 and M4
1	SA2-12 Model: SA2-12 Optical Breadboard Plate, Solid Aluminum, 12 x 24 in., 1 in. 1/4-20 Grid $355 In Stock See Full Product Details Product Series Overview Solid Aluminum Optical Breadboard Plates	Optical Breadboard Plate, Solid Aluminum, 12 x 24 in., 1 in. 1/4-20 Grid
6	TSP-2 Model: TSP-2 Optical Post, 2.0 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads $11.80 In Stock See Full Product Details Product Series Overview Miniature Optical Mounting Posts	Optical Post, 2.0 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads
4	TSP-3 Model: TSP-3 Optical Post, 3.0 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads $13.10 In Stock See Full Product Details Product Series Overview Miniature Optical Mounting Posts	Optical Post, 3.0 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads
