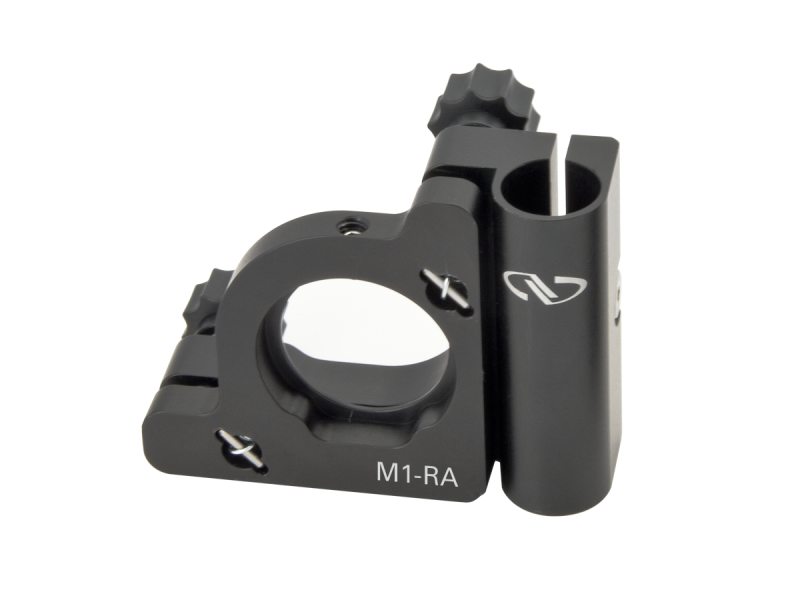

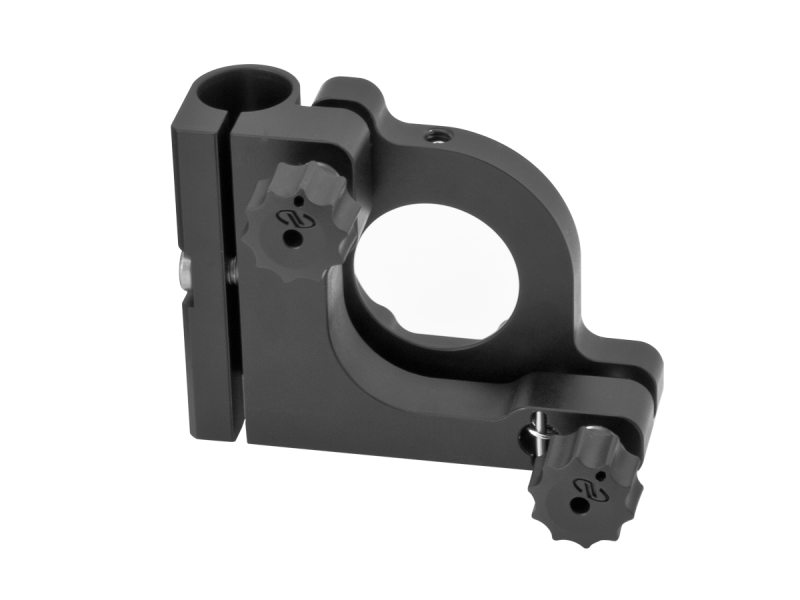

Mirror Mount, Side-Clamp, 1.0 in. Diameter 2 Knob Actuators

The M1-RA has a unique integrated post clamp for mounting to standard 0.5 in. (12.7 mm) optical posts. With this mounting mechanism, post holders are no longer required for providing height adjustment, rather, you simply mount directly to a standard post. The side-mounted clamp allows the mirror mount to slide over the full length of the post from table surface level to the top of the post. This wide height-adjustment range is simply not achievable using a standard post and post holder. Mounting this way also allows M1-RA mirror mounts to be vertically stackable to enable space saving configurations. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment. The clamping screw can be tightened with either a 5/64 inch, 2 mm, Allen wrench.
