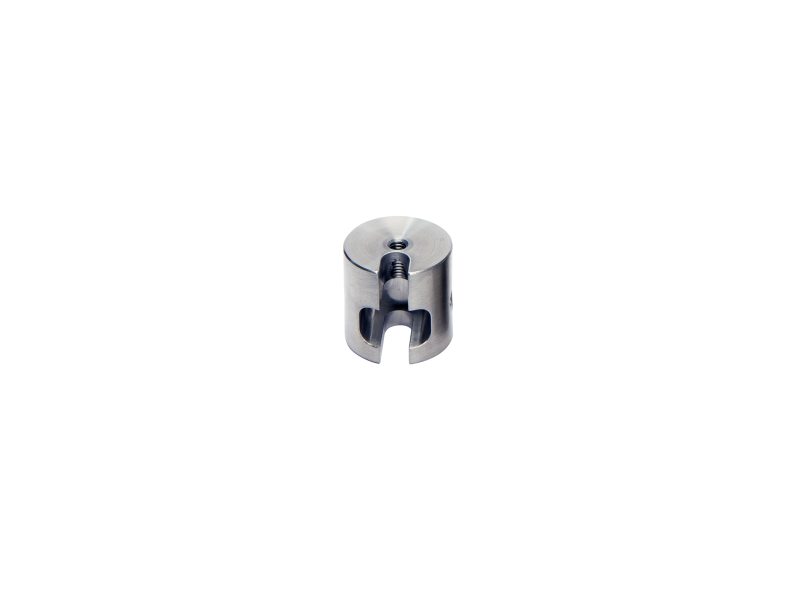

Optical Post, Slotted Base, 25.4 mm Height, 25.4 mm Diameter, M4
Optical Post, Slotted Base, 25.4 mm Height, 25.4 mm Diameter, M4
Model: M-PX-1
Product Series Overview
1.0 in. Forkless Optical PostsThe M-PX-1 Forkless Optical Post has a unique internal slotted base allowing it to be directly mounted to an optical table without a clamping fork. The 16.0 mm long slot provides flexibility in positioning the post before securing it to one of the optical table's holes. This patent-pending feature saves 3X the space of a standard pedestal while still providing positional flexibility and long-term stability. This 25.4 mm diameter stainless steel post has a 25.4 mm height. Cross-drilled holes allow 5.0 mm hex wrenches to aid in tightening and loosening assembled posts.
Resources & Downloads
2D Product Drawings
PX-SERIES-POST.pdf(415.5 kB, PDF)
Other
M-PX-1_RoHS2021.pdf(685.7 kB, PDF)
