Laser Safety Glasses, Polycarbonate, 16% VLT, Diode, Nd:YAG, Disk, Fiber

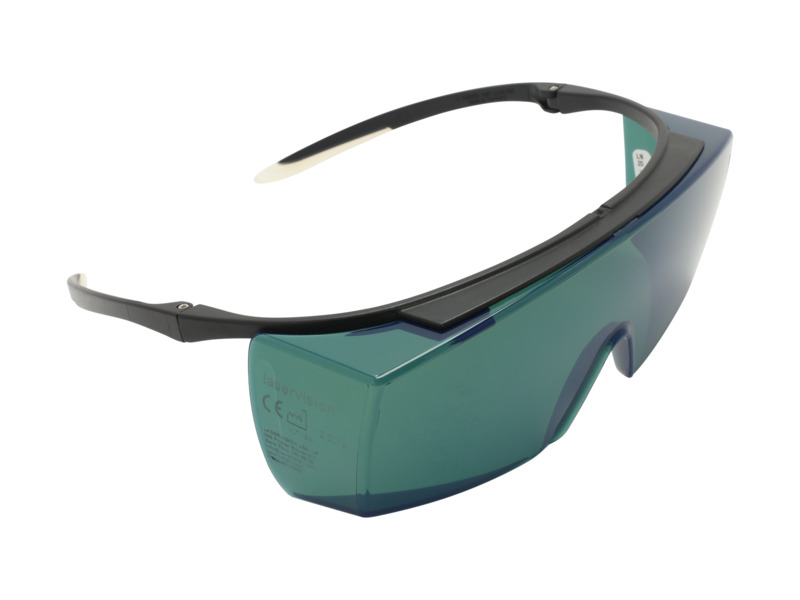

The LV-F22.P1P10 is for Diode, Nd:YAG, Disk, Fiber, CO2 wavelengths. F22 style glasses with blue color polycarbonate lenses. Laservision's Polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 16 % VLT (visible light transmission). F22 glasses are light weight providing comfort during long term use, and easily fit over prescription eyewear. Meets ANSI Z136.1 and EN207 requirements.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve of each lens type is available for download here or on the individual product pages by clicking on a model number.

Optimal Field of View

Laservision's polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage.

Flexible Temples with Hinges and Light Weight for Comfort

These glasses features flexible temples with hinges. Coupled with their light weight, they provide comfort during long term use.

Fits Over Prescription Eyewear

The design of these goggles allows them to comfortably fit over prescription eyewear.

Specifications

Technical Specs

Frame Style
F22 OTG Glasses
Visible Light Transmission
16%
Filter Color
Blue
Filter Type
P1P10
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ 315-385 nm
OD > 4 @ 385-400 nm
OD = 1-2 @ 640-700 nm
OD > 2 @ 730-770 nm
OD > 3 @ 770-800 nm
OD > 4 @ 800-840 nm
OD > 5 @ 840-880 nm
OD > 6 @ 880-960 nm
OD > 7 @ 960-1030 nm
OD > 8 @ 1.03-1.4 µm
OD > 4 @ 1.4-3.6 µm
OD > 3 @ 3.6-4.8 µm
OD > 4 @ 4.8-11.5 µm
Laser Type
Diode
Nd:YAG
Disc
Fiber
CO₂

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB10 + IR LB4 + M LB6
315-385 D LB6 + IRM LB8
385-400 DIRM LB4
640-700 0.01W 2x10E-6J RB1
730-770 DIRM LB2
770-800 DIRM LB3
800-840 DIRM LB4
840-880 DIRM LB5
880-960 DIRM LB6
960-1030 D LB6 + IRM LB7
1030-1400 D LB6 + IRM LB8
1400-3600 D LB3 + I LB4 + R LB3Y + M LB1
3600-4800 DI LB3 + R LB3Y + M LB1
4800-11500 DI LB4 + R LB3Y

Frame Style
F22 OTG Glasses
Visible Light Transmission
16%
Filter Color
Blue
Filter Type
P1P10
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ 315-385 nm
OD > 4 @ 385-400 nm
OD = 1-2 @ 640-700 nm
OD > 2 @ 730-770 nm
OD > 3 @ 770-800 nm
OD > 4 @ 800-840 nm
OD > 5 @ 840-880 nm
OD > 6 @ 880-960 nm
OD > 7 @ 960-1030 nm
OD > 8 @ 1.03-1.4 µm
OD > 4 @ 1.4-3.6 µm
OD > 3 @ 3.6-4.8 µm
OD > 4 @ 4.8-11.5 µm
Laser Type
Diode
Nd:YAG
Disc
Fiber
CO₂

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB10 + IR LB4 + M LB6
315-385 D LB6 + IRM LB8
385-400 DIRM LB4
640-700 0.01W 2x10E-6J RB1
730-770 DIRM LB2
770-800 DIRM LB3
800-840 DIRM LB4
840-880 DIRM LB5
880-960 DIRM LB6
960-1030 D LB6 + IRM LB7
1030-1400 D LB6 + IRM LB8
1400-3600 D LB3 + I LB4 + R LB3Y + M LB1
3600-4800 DI LB3 + R LB3Y + M LB1
4800-11500 DI LB4 + R LB3Y

Resources & Downloads

Literature

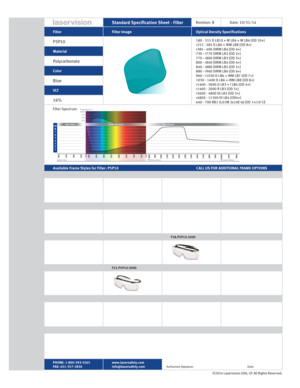

LV-F22.P1P10 Specification Sheet(541.5 kB, PDF)
