Laser Safety Glasses, Polycarbonate, 35% VLT, Diode, Nd:YAG, Disk, Fiber

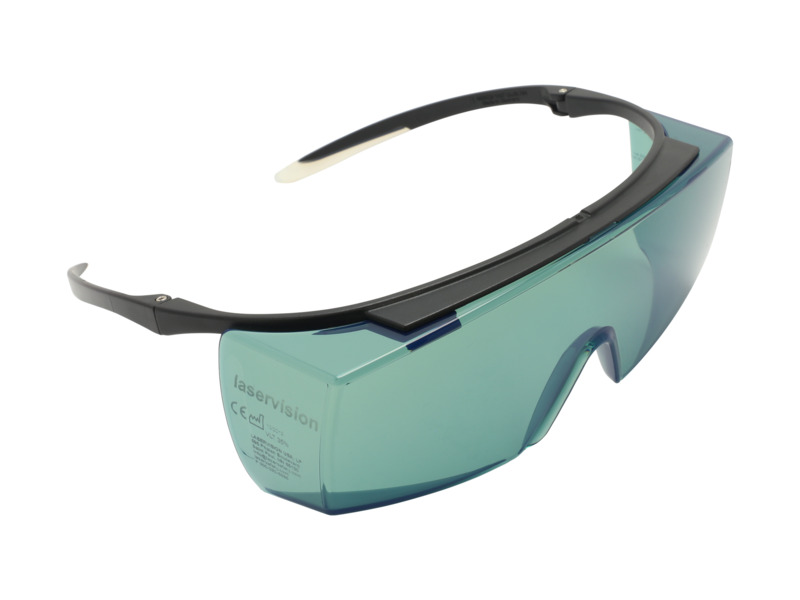

The LV-F22.P1M01 is for Diode, Nd:YAG, Disk, Fiber and CO2 wavelengths. F22 style glasses with blue color polycarbonate lenses. Laservision's Polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 35 % VLT (visible light transmission). F22 glasses are light weight providing comfort during long term use, and easily fit over prescription eyewear. Meets ANSI Z136.1 and EN207 requirements.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve of each lens type is available for download here or on the individual product pages by clicking on a model number.

Optimal Field of View

Laservision's polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage.

Flexible Temples with Hinges and Light Weight for Comfort

These glasses features flexible temples with hinges. Coupled with their light weight, they provide comfort during long term use.

Fits Over Prescription Eyewear

The design of these goggles allows them to comfortably fit over prescription eyewear.

Specifications

Technical Specs

Frame Style
F22 OTG Glasses
Visible Light Transmission
35%
Filter Color
Blue
Filter Type
P1M01
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ >315-385 nm
OD > 4 @ >385-400 nm
OD > 2 @ 780-<840 nm
OD > 3 @ 840-<920 nm
OD > 4 @ 920-2550 nm
OD > 2 @ >2.55-5.2 µm
OD > 4 @ 5.2-11.5 µm
Laser Type
Diode
Nd:YAG
Disc
Fiber
CO₂

Lens Material
Polycarbonate
CE
Yes
EN207
180 - 315 D LB10 + IR LB4 + M LB6
>315 - 385 D LB6 + IRM LB8
>385 - 400 DIRM LB4
780 - <840 DIRM LB2
840 - <920 DIRM LB3
920 - 1400 DIRM LB4
>1400 - 2550 D LB3 + IR LB4 + M LB1
>2550 - 3600 DI LB3 + R LB3Y + M LB1
>3600 - 4800 DIR LB2 + M LB1
>4800 - 5200 DIR LB2
>5200 - 11500 DI LB4

Frame Style
F22 OTG Glasses
Visible Light Transmission
35%
Filter Color
Blue
Filter Type
P1M01
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ >315-385 nm
OD > 4 @ >385-400 nm
OD > 2 @ 780-<840 nm
OD > 3 @ 840-<920 nm
OD > 4 @ 920-2550 nm
OD > 2 @ >2.55-5.2 µm
OD > 4 @ 5.2-11.5 µm
Laser Type
Diode
Nd:YAG
Disc
Fiber
CO₂

Lens Material
Polycarbonate
CE
Yes
EN207
180 - 315 D LB10 + IR LB4 + M LB6
>315 - 385 D LB6 + IRM LB8
>385 - 400 DIRM LB4
780 - <840 DIRM LB2
840 - <920 DIRM LB3
920 - 1400 DIRM LB4
>1400 - 2550 D LB3 + IR LB4 + M LB1
>2550 - 3600 DI LB3 + R LB3Y + M LB1
>3600 - 4800 DIR LB2 + M LB1
>4800 - 5200 DIR LB2
>5200 - 11500 DI LB4

Resources & Downloads

Literature

LV-F22.P1M01 Specification Sheet(350.4 kB, PDF)
