LTA-M12 Mounting Adapter

Mounting Adapter, LTA-HS to UMR8, MVN80 and SL

Model: LTA-M12

$105

In Stock

Compare

Add to List

Product Series Overview

Linear Stage Hardware

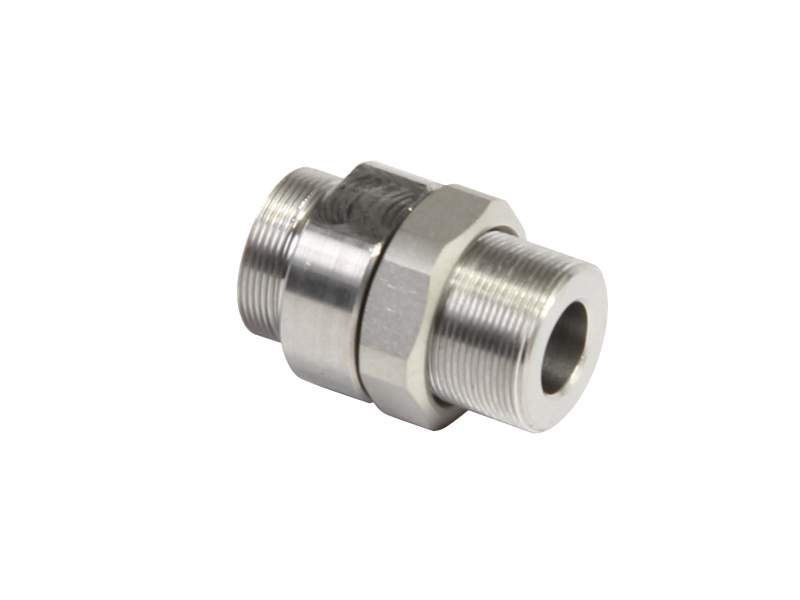

The LTA-M12 Mounting adapter is designed for the LTA-HS actuator. It replaces the collet delivered with the LTA-HS actuator and allows for mounting to UMR8 and MVN80 series stages or SL series mirror mounts.

Specifications

Technical Specs

Thread Type

M12X0.5

Thread Type

M12X0.5

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LTA-M12 (367 kB, PDF)

Other

LTA-M12 RoHS Certificate (277 kB, PDF)

Literature

LTA Data Sheet.pdf (2 MB, PDF)

Related Products

Compatible

Description	Compatibility	Avail.	Price
UMR8.25 Linear Stage, Double-Row Ball Bearings, 0.98 in., 8-32 and 1/4-20	IMPERIAL	In Stock	$434
MVN80 Vertical Linear Stage, Precision Ball Bearing, 0.5 in. Travel, 8-32 & 1/4-20 Threads	IMPERIAL	In Stock	$1,271
LTA-HS Motorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	In Stock	$2,410

Notes:

Newport's motorized actuators can also be directly connected to numerous manual positioning products and mounts. Please see our Motorized Linear Actuator Compatibility Guide for a complete list.
