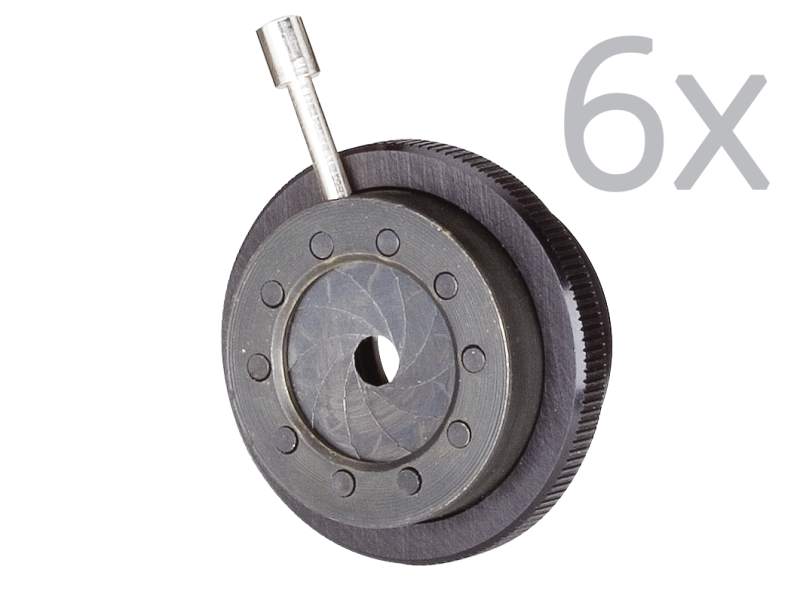

Iris Diaphragm Pack, 1 - 11 mm Aperture Range, 8-32, 10 Leaves, Qty 6

This is a 6-pack of the
Continuously Adjustable Opening With Ideal Shape

For smooth adjustment and an optimal shape for the aperture opening, each iris consists of an array of curved, overlapping, spring-steel leaves that intersect into the circular opening. Up to 18 leaves adjust continuously between two supporting rings with the adjustment of a pin handle attached to the inner ring.
Resources & Downloads
2D Product Drawings
ID-0-525-S(68.4 kB, PDF)
Other
ID-0.5-PK RoHS Certificate(277.4 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

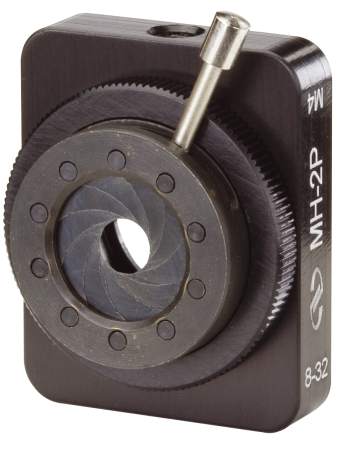

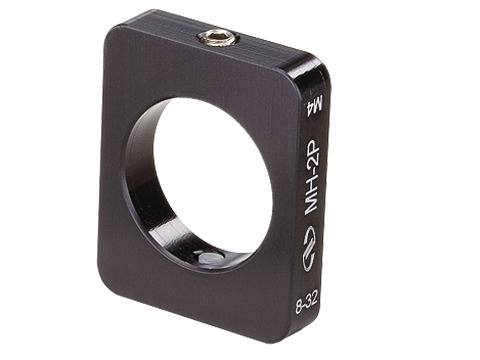

![]() | MH-2PLens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
